MEAN WELL

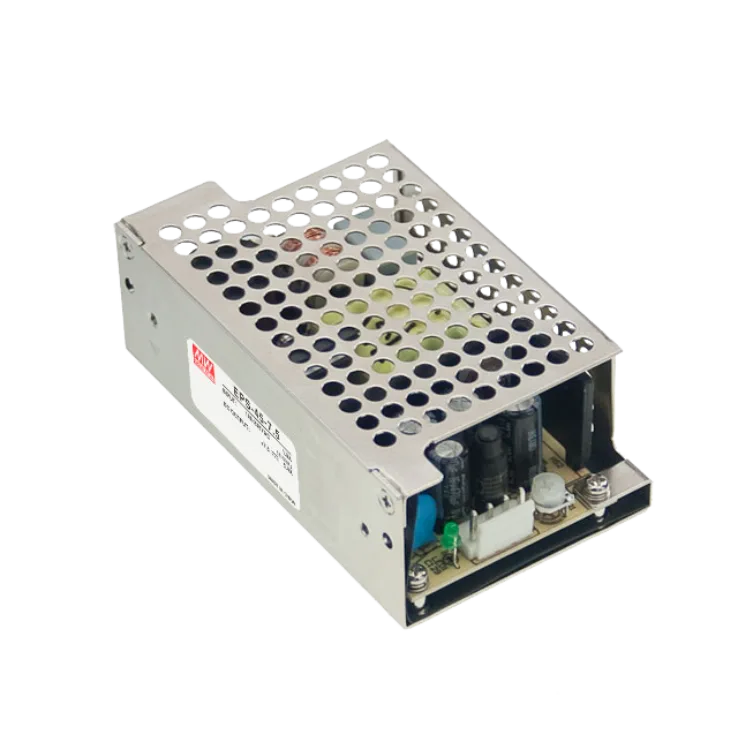

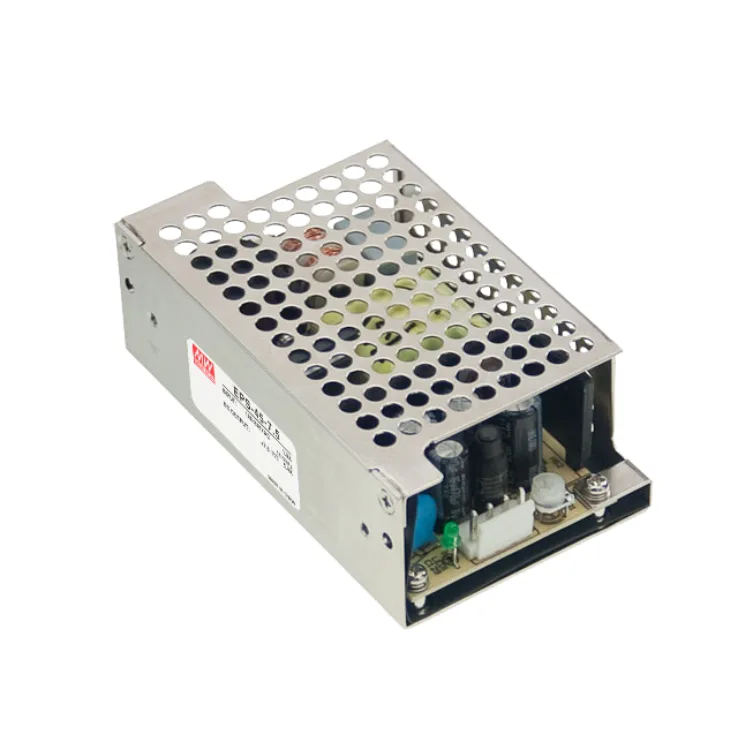

EPS-45 Series Open Frame Power Supplies 45W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Open Frame Power Supplies |
EPS-45 Series Features:
No load power consumption <0.3
Protections: Short circuit / Overload / Over voltage
Other features:
- 4"x2"x 0.95 compact size
- High efficiency up to 90%
- Universal AC input / Full range
- Case available
- Cooling by free air convection
- LED indicator for power on
- 3 years warranty
| Wattage | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC |
| Output Current | 0~8/9 | 0~8/9 | 0~5.4/6 | 0~3.75/4.2 | 0~3/3.3 | 0~1.9~2.1 | 0~1.25.1.4 | 0~1/1.1 | 0~8 | 0~8 | 0~5.4 | 0~3.75 | 0~3 | 0~1.9 | 0~1.25 | 0~1 |
| Output Voltage | 3.3 | 0 | 7.5 | 12 | 15 | 24 | 36 | 48 | 3.3 | 5 | 7.5 | 12 | 15 | 24 | 36 | 48 |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single |
| DC output adjustment | +/- 10% rated output voltage | +/- 10% rated output voltage | +/- 10% rated output voltage | +/- 10% rated output voltage | +/- 10% rated output voltage | +/- 10% rated output voltage | +/- 10% rated output voltage | +/- 10% rated output voltage | 3.1~3.6V | 4.75~5.5V | 7.13~8.25 | 10.8~13.5V | 13.5~16.5V | 21.6~27V | 32.4~39.6V | 43.2~52.8V |
| Dimensions | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 |
| Working Temperature | -30~+70°C | |||||||||||||||
| Safety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11 | |||||||||||||||
