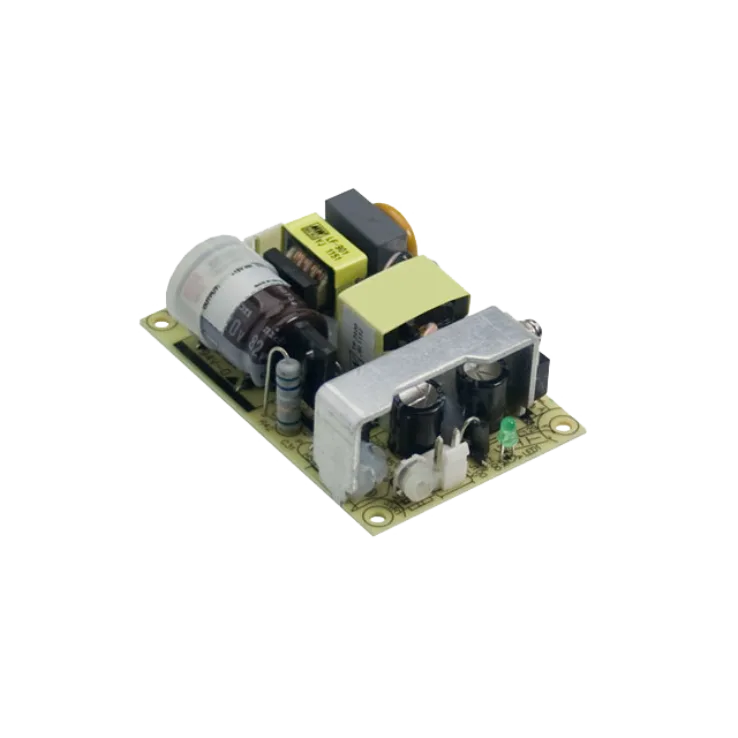

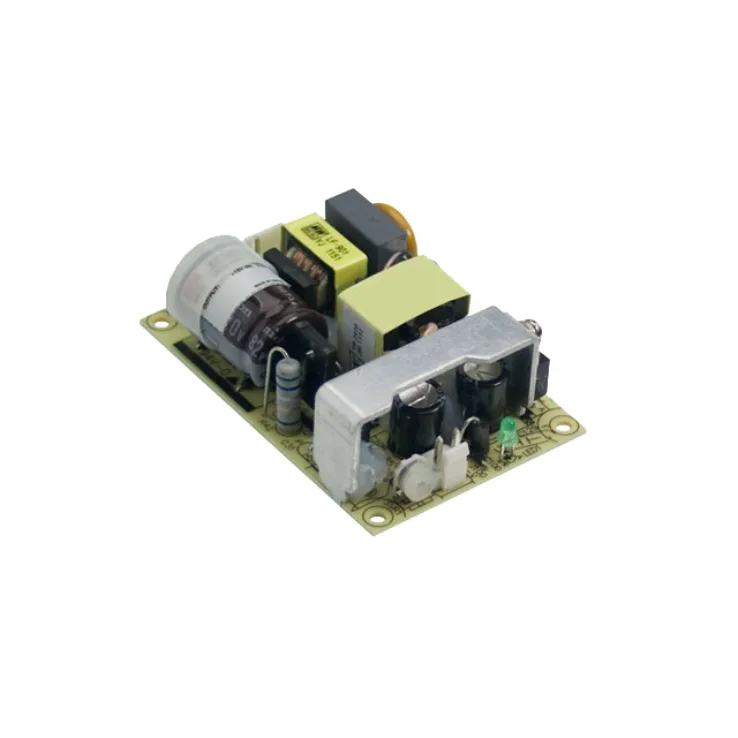

EPS-35 Series Open Frame Power Supplies 20–36W

Download Datasheet
Models:
  • EPS-35-3.3
  • EPS-35-5
  • EPS-35-7.5
  • EPS-35-12
  • EPS-35-15
  • EPS-35-24
  • EPS-35-27
  • EPS-35-36
  • EPS-35-48
Manufacturer: Mean Well
Type: Open Frame Power Supplies

EPS-35 Series Features:

Universal AC input / Full range

No load power consumption<0.3W

Protections: Short circuit / Overload / Over voltage

Other features:

  • Cooling by free air convection
  • 3" 2" compact size
  • High efficiency up to 90%
  • LED indicator for power on
  • 3 years warranty
Wattage 20 30 35 36 36 36 35 36 36
Input Voltage 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC
Output Current 0~6.6 0~6.6 0~5.2 0~3.3 0~2.65 0~1.65 0~1.45 0~1.1 0~0.82
Output Voltage 3.3 5 7.5 12 15 24 27 36 48
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment 3.1~3.6 4.75~5.5 7.13~8.25 10.8~13.5 13.5~16.5 21.6~27 24.3~29.7 32.4~39.6 43.2~52.8
Dimensions 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24
Working Temperature -30~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level, criteria A
