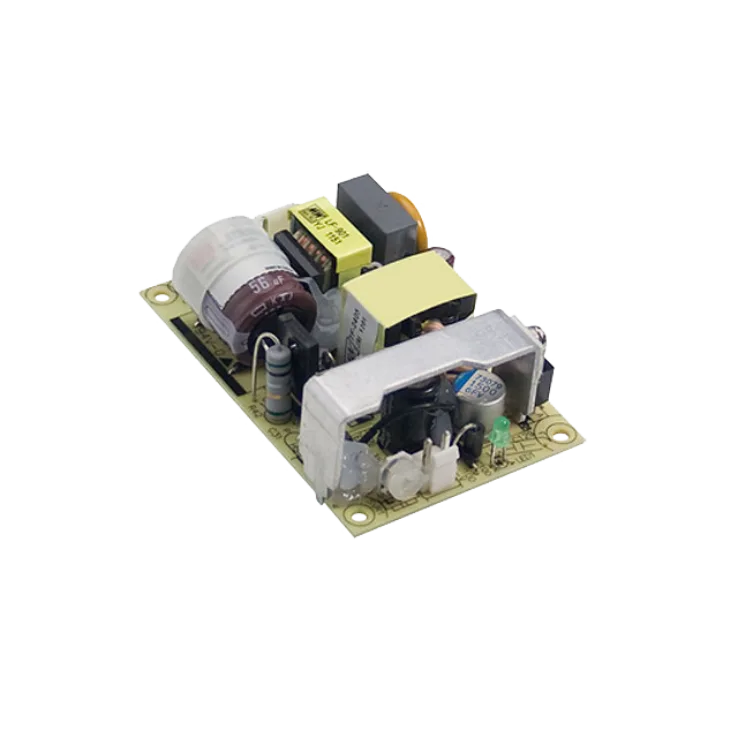

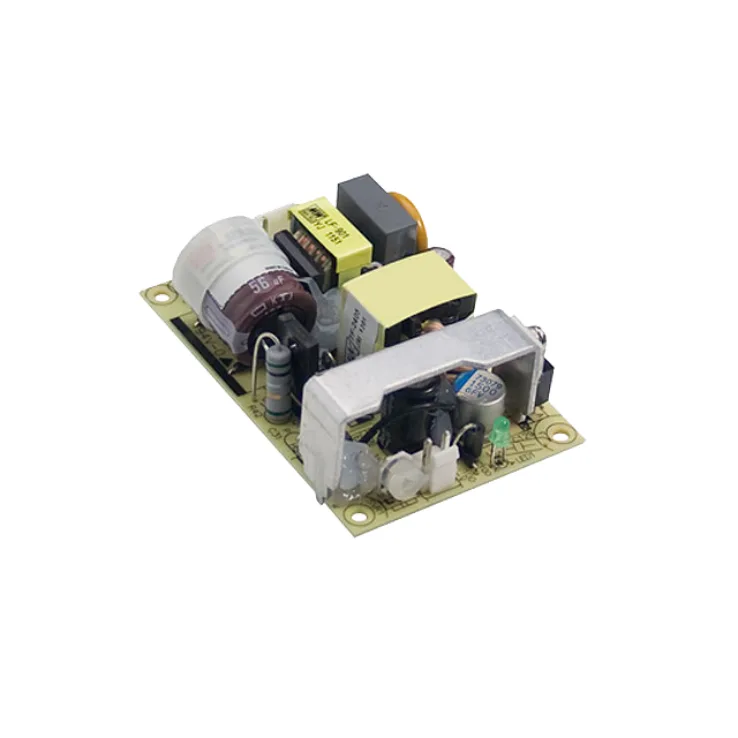

Mean Well EPS-25 Series Open Frame Power Supplies 16.5–25.5W

Download Datasheet
Models:
  • EPS-25-3.3
  • EPS-25-5
  • EPS-25-36
  • EPS-25-27
  • EPS-25-24
  • EPS-25-48
  • EPS-25-15
  • EPS-25-7.5
  • EPS-25-12
Manufacturer: Mean Well
Type: Open Frame Power Supplies

EPS-25 Series Features:

Universal AC input / Full range

No load power consumption<0.3W

Protections: Short circuit / Overload / Over voltage

Other features:

  • Cooling by free air convection
  • 3" 2" compact size
  • High efficiency up to 90%
  • LED indicator for power on
  • 3 years warranty
Wattage 16.5 25 25 25 25 25 25 25.5 25
Input Voltage 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC
Output Current 0~5.5 0~5.5 0~0.78 0~1.05 0~1.17 0~0.59 0~1.87 0~3.74 0~2.34
Output Voltage 3.3 5 36 27 24 48 15 7.5 12
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment 3.1~3.6 4.75~5.5 32.4~39.6 24.3~29.7 21.6~27 43.2~52.8 13.5~16.5 7.13~8.25 10.8~13.5
Dimensions 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24
Working Temperature -30~+70B0C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level, criteria A
