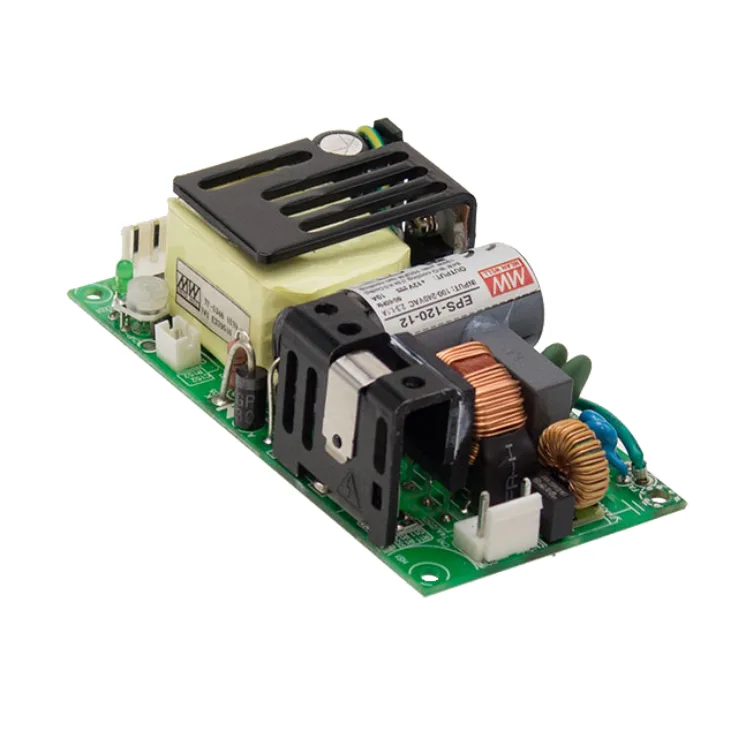

EPS-120 Series Open Frame Power Supplies 120–121.5W

EPS-120 Series Features:

No load power consumption <0.3

Protections: Short circuit / Overload / Over voltage

Other features:

Spec	EPS-120-12	EPS-120-15	EPS-120-24	EPS-120-27	EPS-120-48
Wattage	120	120	120	121.5	120
Input Voltage	80-264VAC	80-264VAC	80-264VAC	80-264VAC	80-264VAC
Output Current	10A	8A	5A	4.5A	2.5A
Output Voltage	12	15	24	27	48
Output Voltage Options	Single	Single	Single	Single	Single
DC output adjustment	11.4-12.6V	14.3-15.8	22.8-25.2V	25.6-28.4V	45.6-50.4V
Dimensions	101.6x 50.8x 29	101.6x 50.8x 29	101.6x 50.8x 29	101.6x 50.8x 29	101.6x 50.8x 29
Working Temperature	-40-+85°C
Safety Standards	UL60950-1, TUV EN60950-1, IEC60950-1 approved
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level(surge 2KV), criteria A.
