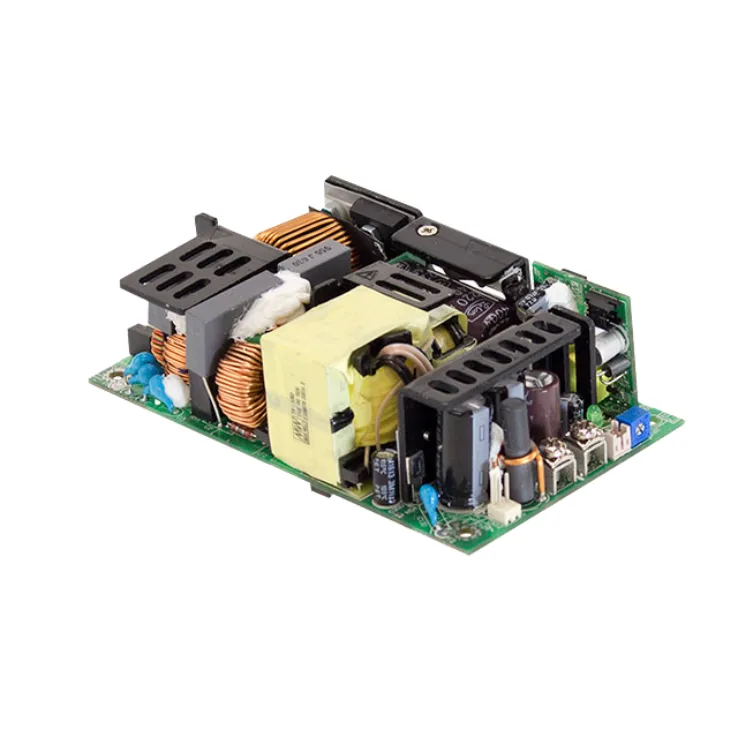

EPP-400 Series Open Frame Power Supplies 399.6–403.2W

Name: EPP-400 Series | Open Frame Power Supplies
SKU: EPP-400 Series

EPP-400 Series Features:

5bx3b miniature size

250W Convection, 400W force air

Protections: Short circuit / Overload / Over voltage / Over temperature

Other Features:

Spec	EPP-400-12	EPP-400-15	EPP-400-18	EPP-400-24	EPP-400-27	EPP-400-36	EPP-400-48
Wattage	399.6	400.5	401.4	400.8	402.3	403.2	403.2
Input Voltage	80~264VAC	80~264VAC	80~264VAC	80~264VAC	80~264VAC	80~264VAC	80~264VAC
Output Current	0~33.3	0~26.7	0~22.3	0~16.7	0~14.9	0~11.2	0~8.4
Output Voltage	12	15	18	24	27	36	48
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	11.4-12.6V	14.3-15.8V	17.1-18.9V	22.8-25.2V	25.6-28.4V	34.2-37.8V	45.6-50.4V
Dimensions	127 x 76.2 x 35	127 x 76.2 x 35	127 x 76.2 x 35	127 x 76.2 x 35	127 x 76.2 x 35	127 x 76.2 x 35	127 x 76.2 x 35
Working Temperature	-30~+70°C
Safety Standards	UL60950-1, TUV EN60950-1, IEC60950-1 approved
EMC Standards	EN55022 (CISPR22), EN61000-3-2,3 Compliance to EN55024, EN60601-1-2, EN61000-4-2,3,4,5,6,8,11
