MEAN WELL

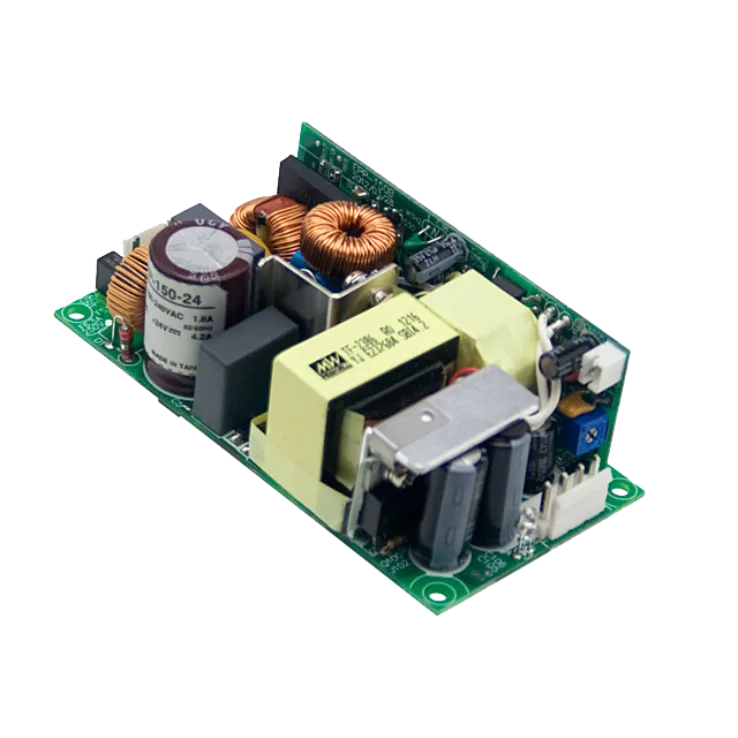

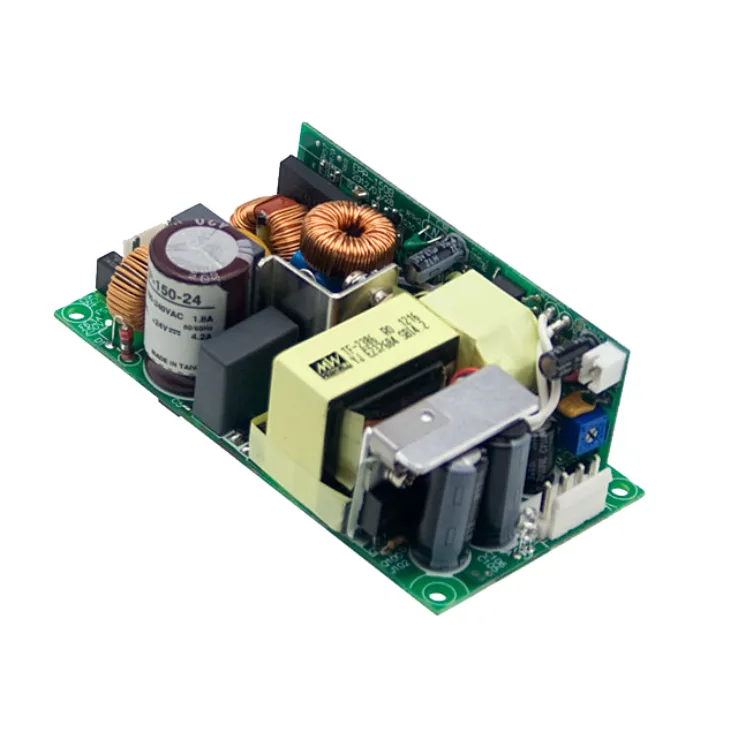

EPP-150 Series Open Frame Power Supplies 150W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Open Frame Power Supplies |
EPP-150 Series Features:
No load power consumption <0.5W
Built-in active PFC function
Protections: Short circuit/Overload/Over voltage/Over temperature
- 4" x 2" compact size
- Universal AC input/Full range
- High efficiency up to 92.5%
- 100W free air convection, 150W with 20CFM forced air
- LED indicator for power on
- Built-in 12V/0.3A auxiliary output
- 3 years warranty
| Wattage | 150 | 150 | 150 | 150 | 150 |
|---|---|---|---|---|---|
| Input Voltage | 90~264VAC, 127VDC~370VDC | 90~264VAC, 127VDC~370VDC | 90~264VAC, 127VDC~370VDC | 90~264VAC, 127VDC~370VDC | 90~264VAC, 127VDC~370VDC |
| Output Current | 0~12.5 | 0~10 | 0~6.25 | 0~5.56 | 0~3.125 |
| Output Voltage | 12 | 15 | 24 | 24 | 48 |
| Output Voltage Options | Single | Single | Single | Single | Single |
| DC output adjustment | 11.76~12.6 | 14.7~15.75 | 23.52~25.2 | 26.46~28.35 | 47.04~50.4 |
| Dimensions | 101.6x 50.8x 29 | 101.6x 50.8x 29 | 101.6x 50.8x 29 | 101.6x 50.8x 29 | 101.6x 50.8x 29 |
| Working Temperature | -30~+70°C (Refer to "Derating Curve") | ||||
| Safety Standards | UL60950-1, TUV EN60950-1 approved | ||||
| EMC Standards | Compliance to EN55022 (CISPR22), EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, heavy industry level, criteria A | ||||
