Mean Well Mean Well logo

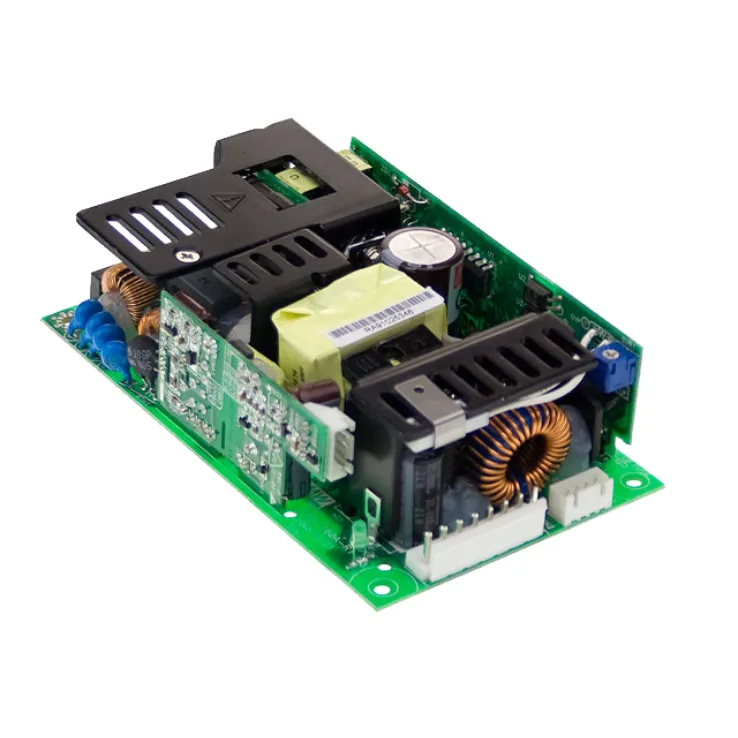

RPTG-160 Series Medical Grade Power Supplies 143–147.8W

Download Datasheet
Models:
  • RPTG-160A
  • RPTG-160B
  • RPTG-160C
  • RPTG-160D
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

RPTG-160 Series Features:

No load power consumption under 0.75W by PS-ON control

Standby 5V@0.8A with fan, @0.6A without fan

Protections: Short circuit / Overload / Over voltage

Other Features:

  • Universal AC input / Full range
  • 5"x3" compact size
  • Built-in active PFC function
  • Free air convection with 20.5 CFM forced air
  • With power good and fail signal output
  • Built-in remote sense function for 5-15V
  • 3 years warranty
Wattage 145 146 143 147.8
Input Voltage 90~264VAC 90~264VAC 90~264VAC 90~264VAC
Output Current 14, 5.5, 1A 14, 5, 1A 14, 3.6, 1A 11, 5, 1.2A
Output Voltage 5, 12, -5V 5, 12, -12V 5, 15, -15V 5, 12, 24V
Output Voltage Options Triple Triple Triple Triple
Dimensions 127*76.2*34.6mm 127*76.2*34.6mm 127*76.2*34.6mm 127*76.2*34.6mm
Working Temperature -20~70°C
Safety Standards UL60601-1, TUV EN60601-1 approved
EMC Standards EN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN60601-1-2
