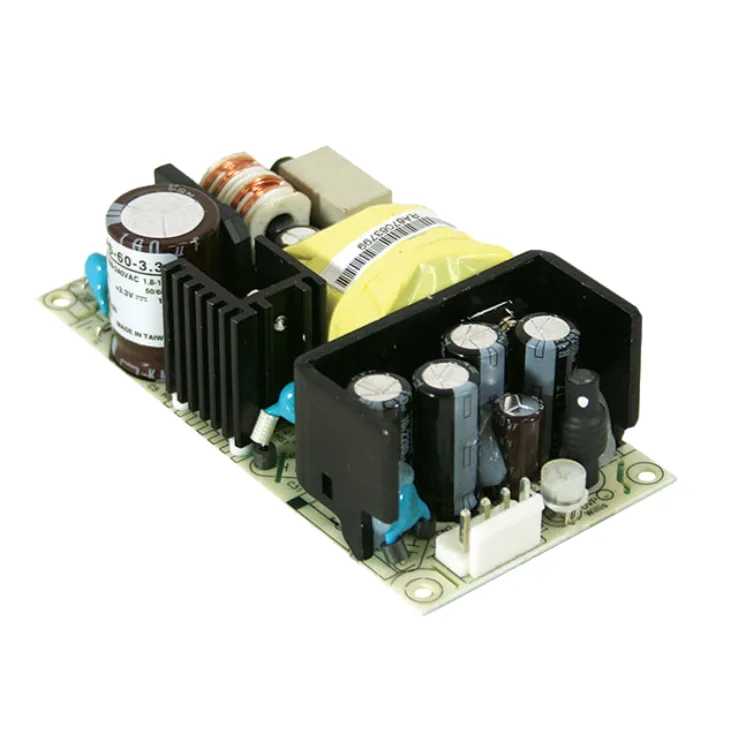

RPS-60 Series Medical Grade Power Supplies 60W

Download Datasheet
Models:
  • RPS-60-3.3
  • RPS-60-5
  • RPS-60-12
  • RPS-60-15
  • RPS-60-24
  • RPS-60-48
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

RPS-60 Series Features:

No load power consumption <0.75W

Protections: Short circuit / Overload / Over voltage

Other Features:

  • 4"x2" miniatures size
  • Universal AC Input / Full range
  • Medical safety approved
  • Low leakage current <200uA
  • 110% peak load capability
  • High power density 6.57W/in3
  • Cooling by free air convection
  • 3 years warranty
Wattage 60 60 60 60 60 60
Input Voltage 90~264VAC, 120~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC
Output Current 0~11A 0~11 0~5.5 0~4.4 0~2.75A 0~1.375A
Output Voltage 3.3 5 12 15 24 48
Output Voltage Options Single Single Single Single Single Single
DC output adjustment -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage
Dimensions 101.6 x 50.8 x 29 101.6 x 50.8 x 29 101.6 x 50.8 x 29 101.6 x 50.8 x 29 101.6 x 50.8 x 29 101.6 x 50.8 x 29
Working Temperature -25~+70°C
Safety Standards Ul6061-1, UL60950-1, TUV EN60601-1, EN60950 approved UL60601-1, TUV EN60601-1, UL60950-1, EN60950-1 approved UL2601-1, TUV EN60601-1, IEC60601-1 approved UL60601-1, TUV EN60601-1, UL60950-1, EN60950-1 approved Ul6061-1, UL60950-1, TUV EN60601-1, EN60950 approved
EMC Standards EN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2, EN61204-3 Medical level, criteria A EN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2, EN61204-3 Medical level
