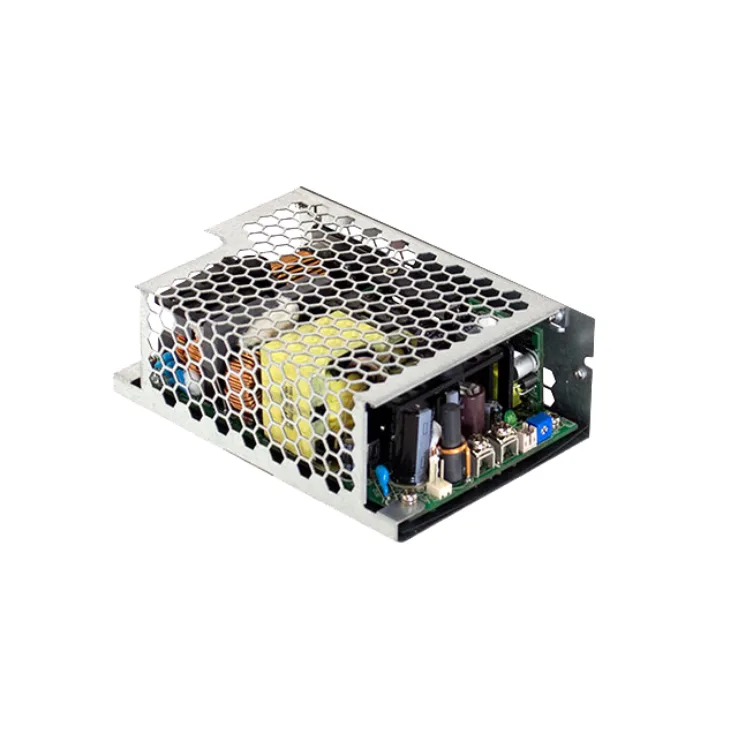

RPS-500-C Series Medical Grade Power Supplies 550W

Download Datasheet
Models:
  • RPS-500-12-C
  • RPS-500-15-C
  • RPS-500-18-C
  • RPS-500-24-C
  • RPS-500-27-C
  • RPS-500-36-C
  • RPS-500-48-C
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

RPS-500-C Series Features:

RPS-500 is a 500W highly reliable green PCB type medical power supply with a high power density on the 5" by 3" footprint.

Features:

  • 5" by 3" compact size
  • 320W convection, 500W force air
  • 550W peak power (3 sec)
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
  • EMI for both class I and class II configuration
  • -30~+70°C wide range operating temperature
  • No load power consumption <0.5W by PS_ON control
  • High efficiency up to 94%
  • Protections: short circuit/ overload/ over voltage/ over temperature
  • 5Vdc standby output, 12 Vdc fan supply, power good, power fail and remote sense.
  • Operating altitude up to 4000 meters (Note.5)
  • LED indicator power on
  • 3 years warranty
Wattage 550 550 550 550 550 550 550
Input Voltage 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC
Output Current 41.6A 25CFM / 26.7A Convection 33.3A 25CFM / 21.3A Convection 27.8A 25CFM / 17.8A Convection 20.8A 25CFM / 13.4A Convection 18.5A 25CFM / 11.9A Convection 13.9A 25CFM / 8.9A Convection 10.4A 25CFM / 6.7A Convection
Output Voltage 12V 15V 18V 24V 27V 36V 48V
Dimensions 5"x3"x1.61"INCH 5"x3"x1.61"INCH 5"x3"x1.61"INCH 5"x3"x1.61"INCH 5"x3"x1.61"INCH 5"x3"x1.61"INCH 5"x3"x1.61"INCH
Working Temperature -30~+70°C
Safety Standards IEC60601-1, TUV EN60601-1, UL ANSI/AAMI ES60601-1 (3.1 version), EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design to refer to EN60335-1 (by request)
