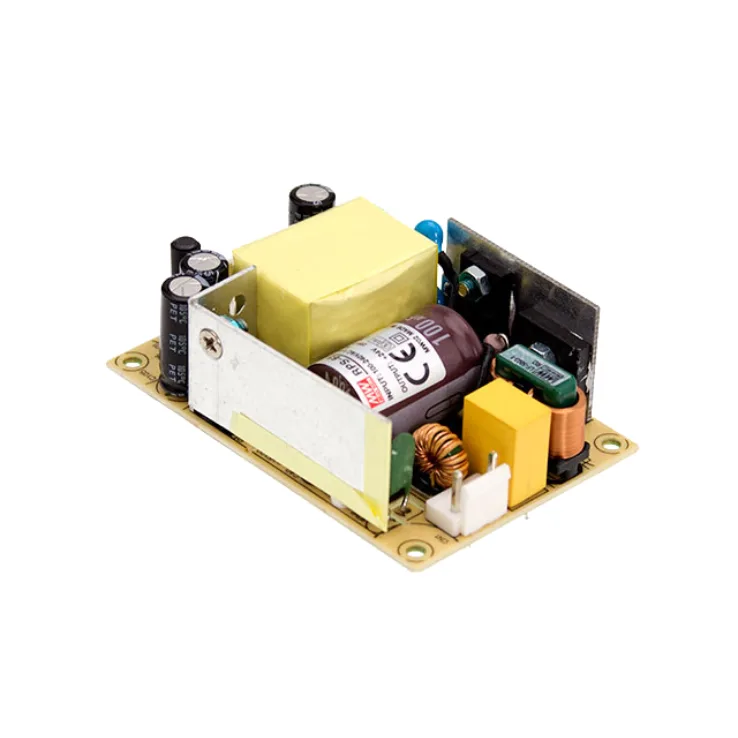

RPS-45 Series Medical Grade Power Supplies 26.4–45.6W

Download Datasheet
Models:
  • RPS-45-3.3
  • RPS-45-5
  • RPS-45-7.5
  • RPS-45-12
  • RPS-45-15
  • RPS-45-24
  • RPS-45-48
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

RPS-45 Series Features:

No load power consumption <0.1W

Protections: Short circuit / Overload / Over voltage

Other Features:

  • 3"x2" miniatures size
  • Universal AC Input / Full range
  • Medical safety approved
  • Low leakage current <100uA
  • Class II (without FG) istallations
  • Suitable for BF application with appropriate system consideration
  • High efficiency up to 91%
  • For 1U applications
  • -30~70°C wide range of operating temperature
  • Operating altitude up to 4000 meters
  • LED indicator for power on
  • Cooling by free air convection
  • 3 years warranty
Wattage 26.4 40 40.5 45.6 45 45.6 45
Input Voltage 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC
Output Current 0~8.8 0~8.8 0~5.95 0~4.18 0~3.3 0~2.1 0~1.03
Output Voltage 3.3 5 7.5 12 15 24 48
Output Voltage Options Single Single Single Single Single Single Single
DC output adjustment 3.1-3.6V 4.7-5.5V 7.12-8.2V 11.4-13.2 13.5-16.5 22.8-27.6 45.6-52.8
Dimensions 76.2 x 50.8 x 24 76.2 x 50.8 x 24 76.2 x 50.8 x 24 76.2 x 50.8 x 24 76.2 x 50.8 x 24 76.2 x 50.8 x 24 76.2 x 50.8 x 24
Working Temperature -30~+70°C
Safety Standards ANSI/AAMI ES60601-1, TUV EN60601-1 / IEC60601-1 approved
EMC Standards EN55011 (CISPR11) Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2 Medical level, criteria A
