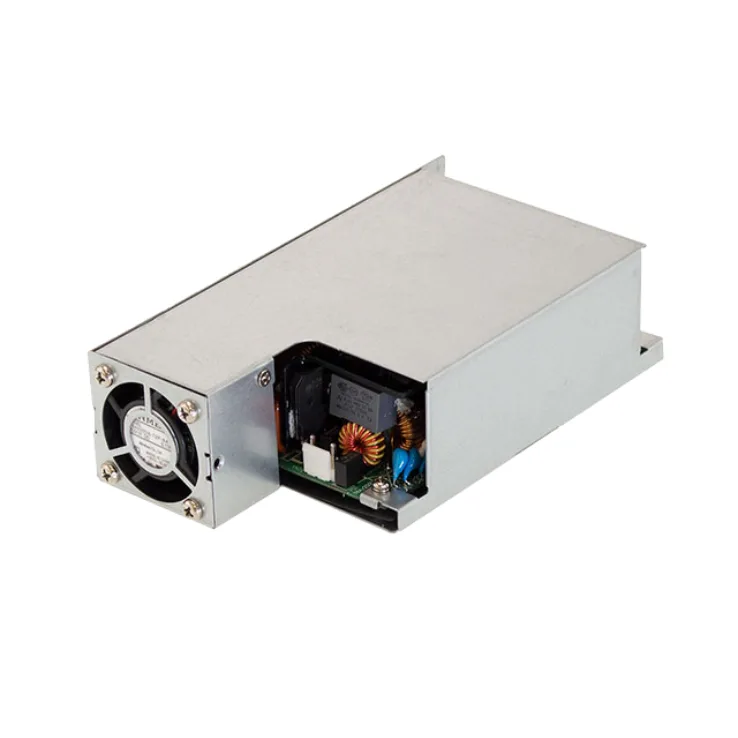

RPS-400-SF Series Medical Grade Power Supplies 399.6–403.2W

Models:	RPS-400-12-SF RPS-400-15-SF RPS-400-18-SF RPS-400-24-SF RPS-400-27-SF RPS-400-36-SF RPS-400-48-SF
Manufacturer:	MEAN WELL
Type:	Medical Grade Power Supplies

RPS-400-SF Series Features:

RPS-400 is a 400W highly reliable green PCB type medical power supply with a high power density on the 5" by 3" footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V.

Features:

5"x3" compact size
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
Suitable for BF application with appropriate system configuration
250W convection, 400W force air
EMI Class B for Class I & Class A for Class II configuration
No load power consumption <0.5W by PS-ON control
5Vdc standby output, 12 Vdc fan supply, Power Good, Power Fail and remote sense
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Operating altitude up to 4000 metres
3 years warranty

Spec	RPS-400-12-SF	RPS-400-15-SF	RPS-400-18-SF	RPS-400-24-SF	RPS-400-27-SF	RPS-400-36-SF	RPS-400-48-SF
Wattage	399.6	400.5	401.4	400.8	402.3	403.2	403.2
Input Voltage	80~264VAC	80~264VAC	80~264VAC	80~264VAC	80~264VAC	80~264VAC	80~264VAC
Output Current	0~33.3	0~26.7	22.3A	0~16.7	0~14.9	0~11.2	0~8.4
Output Voltage	12	15	18	24	27	36	48
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	11.4-12.6V	14.3-15.8V	17.1~18.9V	22.8-25.2V	25.6-28.4V	34.2-37.8V	45.6-50.4V
Dimensions	127 x 76.2 x 35	127 x 76.2 x 35	127 x 76.2 x 35	127 x 76.2 x 35	127 x 76.2 x 35	127 x 76.2 x 35	127 x 76.2 x 35
Working Temperature	-30~+70°C
Safety Standards	ANSI/AAMI ES60601-1, TUV EN60601-1 / IEC60601-1 approved
EMC Standards	EN55011 (CISPR11) Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2 Medical level, criteria A
