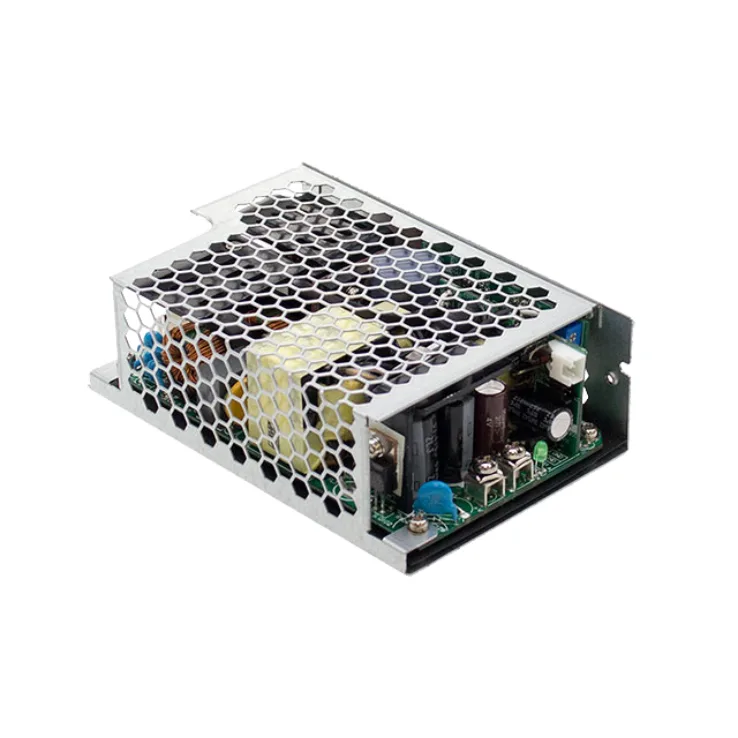

Mean Well RPS-300-C Series Medical Grade Power Supplies 300W

Download Datasheet
Models:
  • RPS-300-12-C
  • RPS-300-15-C
  • RPS-300-24-C
  • RPS-300-27-C
  • RPS-300-48-C
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

RPS-300-C Series Features:

Universal AC input/Full range

Built-in active PFC function

Protections: Short circuit/Overload/Over voltage/Over temperature

  • Built-in 12V/0.5A auxiliary output
  • 5" x 3" compact size
  • Withstand 300VAC surge input for 5 seconds
  • Free air convection for 200W and 300W with 20.5CFM forced air
  • With power good and fail signal output
  • Built-in remote sense function
  • No load power consumption under 0.5W by PS-ON control
  • Standby 5V@1A with fan @ 0.6A without fan
  • 3 years warranty
Wattage 300 300 300 300 300
Input Voltage 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC
Output Current 0~25 0~20 0~12.5 0~11.12 0~6.25
Output Voltage 12 15 24 27 48
Output Voltage Options Single Single Single Single Single
DC output adjustment 11.4~12.6 14.25~15.75 22.8~25.2 25.65~28.35 45.6~50.4
Dimensions 127x 76.2x 35 127x 76.2x 35 127x 76.2x 35 127x 76.2x 35 127x 76.2x 35
Working Temperature -20~+70B0C
Safety Standards ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
EMC Standards Compliance to EN55011 (CISPR11), EN55022 (CISPR22), Conduction: Class B, Radiation Class A: EN61000-3-2,-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN60601-1-2, criteria A
