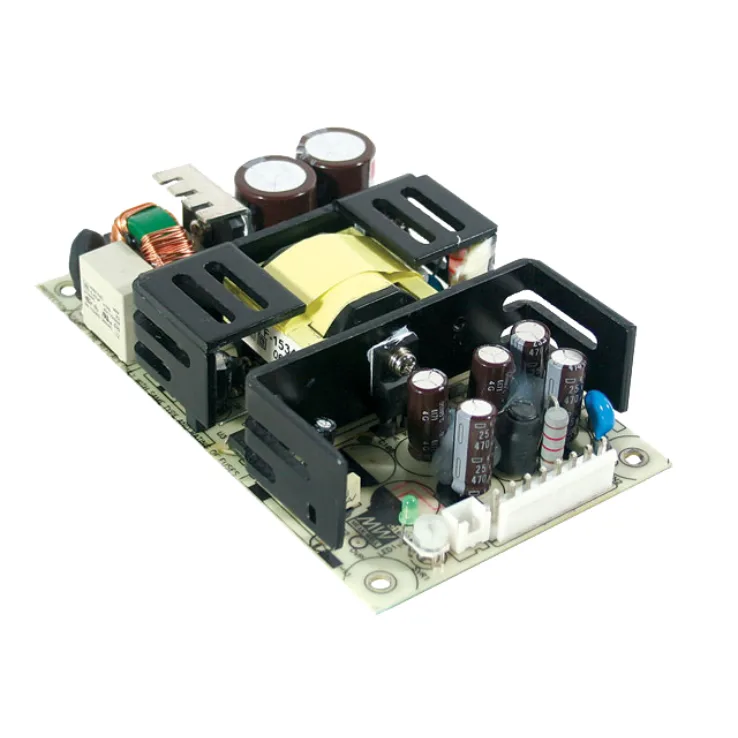

RPD-75 Series Medical Grade Power Supplies 75W

Download Datasheet
Models:
  • RPD-75A
  • RPD-75B
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

RPD-75 Series Features:

Low leakage current <200uA

Protections: Short circuit / Overload / Over voltage

Other Features:

  • Universal AC input / Full range
  • Fixed switching frequency at 45kHz
  • Medical safety approved
  • Fixed switching frequency at 65kHz
  • Free air convection with 23.5CFM forced air
  • 3 years warranty
  • Suitable for medical and IT applications
Wattage 75 75
Input Voltage 90~264VAC: 127~370VDC 90~264VAC, 127~370VDC
Output Current 1.0~6.8, 0~2.1 1.0~9.5, 0.3~4.0
Output Voltage 5, 12 5, 24
Output Voltage Options Dual Dual
DC output adjustment -5%~+10% -5%~+10% rated output voltage
Dimensions 127 x 76.2 x 31 127 x 76.2 x 31
Working Temperature -20~+60°C
Safety Standards UL60601-1, TUV EN60601-1 approved
EMC Standards EN55011 / EN55022 class B, EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN60601-1-2, EN61204-3 medical level EN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2, EN61204-3 Medical level
