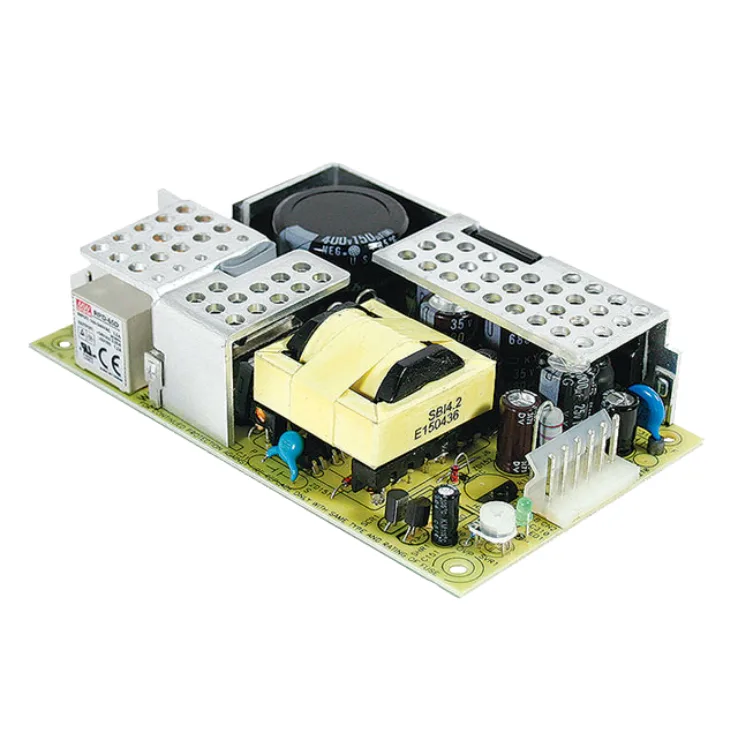

Mean Well RPD-65 Series Medical Grade Power Supplies 65W

Download Datasheet
Models:
  • RPD-65C
  • RPD-65D
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

RPD-65 Series Features:

Low leakage current < 1mA

Protections: Short circuit / Overload / Over voltage

Other features:

  • Universal AC input / Full range
  • Cooling by free air convection
  • 12V or 24V high peak current capability
  • 60-65W free air convection
  • 77-80W with 18 CFM forced air
  • Optional case available (RPD-65x-C)
  • Low cost, high reliability
  • 100% full load burn-in test
  • 2 years warranty
Wattage 65 65
Input Voltage 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC
Output Current 0~5.8, 0~1.5 0~2.9, 0~1.5
Output Voltage 12, 5 24, 5
Output Voltage Options Dual Dual
DC output adjustment CH1: 12V 11.4~12.8V CH1 24V: 22.8~26.4V
Dimensions 127 x 79 x 29 127 x 79 x 29
Working Temperature -20~+65B0C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11
