MEAN WELL

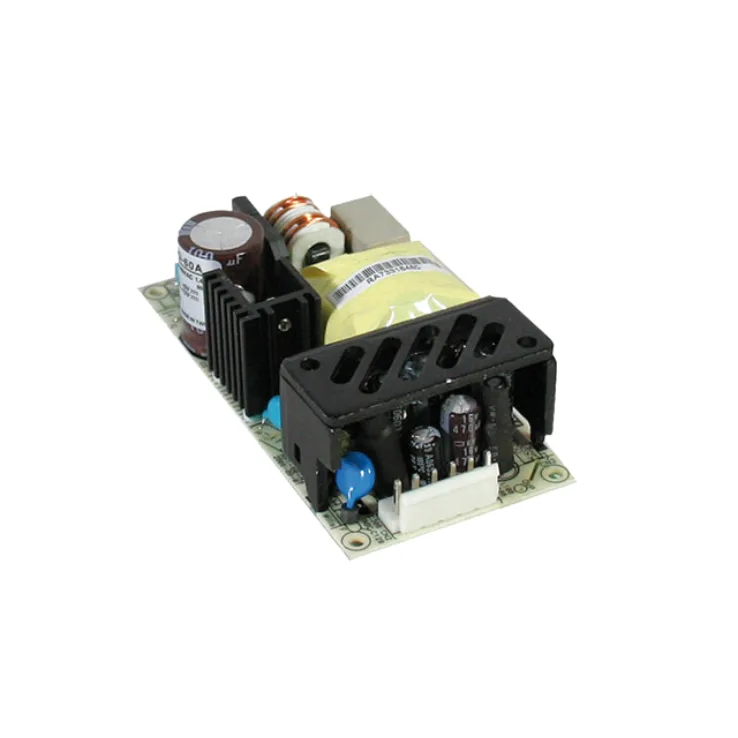

RPD-60 Series Medical Grade Power Supplies 60W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Medical Grade Power Supplies |
RPD-60 Series Features:
Low leakage current <200uA
Protections: Short circuit / Overload / Over voltage
Other Features:
- 4"x2" miniatures size
- Universal AC Input / Full range
- Medical safety approved
- 110% peak load capability
- High power density 6.57W/in3
- Cooling by free air convection
- 3 years warranty
| Wattage | 60 | 60 |
|---|---|---|
| Input Voltage | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC |
| Output Current | 0.5~3.85, 0.1~1.375 | 0.5~5, 0.1~2.2 |
| Output Voltage | 5, 12 | 5, 24 |
| Output Voltage Options | Dual | Dual |
| DC output adjustment | N/A | N/A |
| Dimensions | 101.6 x 50.8 x 29 | 101.6 x 50.8 x 29 |
| Working Temperature | -20~+65°C | |
| Safety Standards | UL60601-1, TUV EN60601-1, UL60950-1, EN60950-1 approved | |
| EMC Standards | EN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2, EN61204-3 Medical level | |
