MEAN WELL

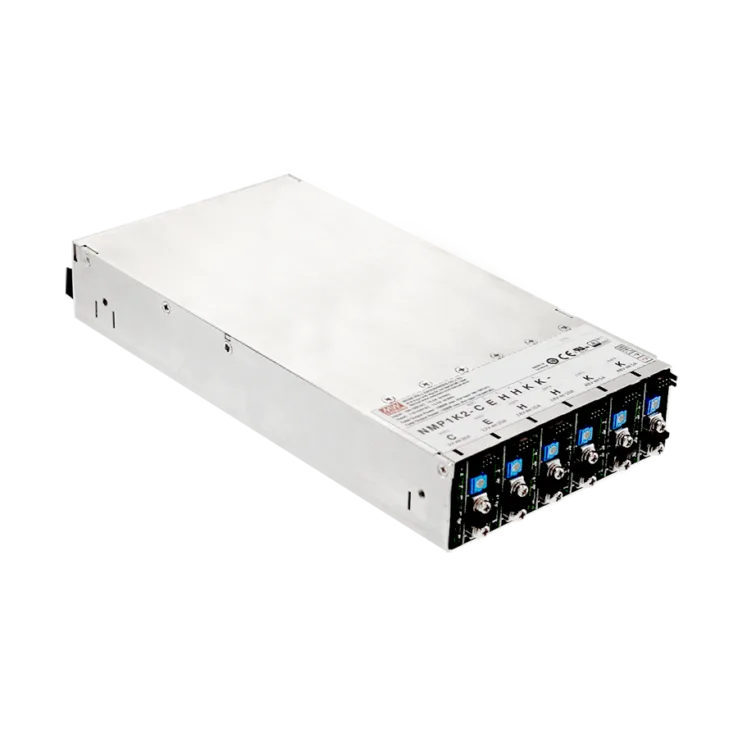

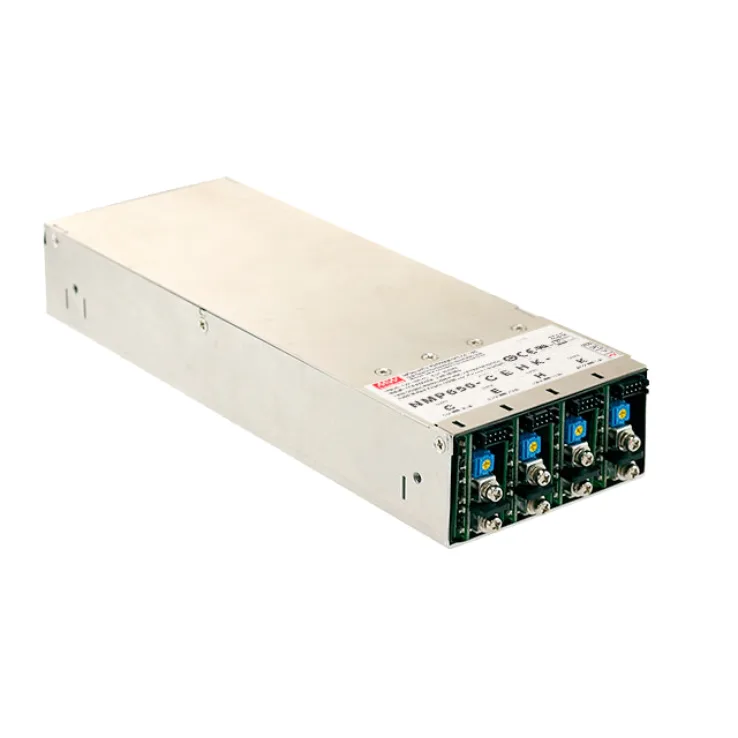

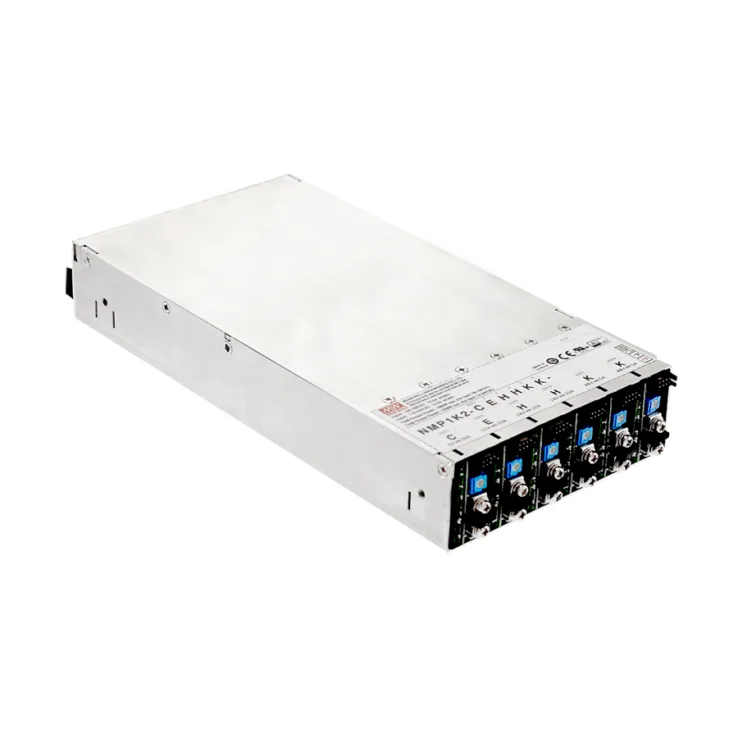

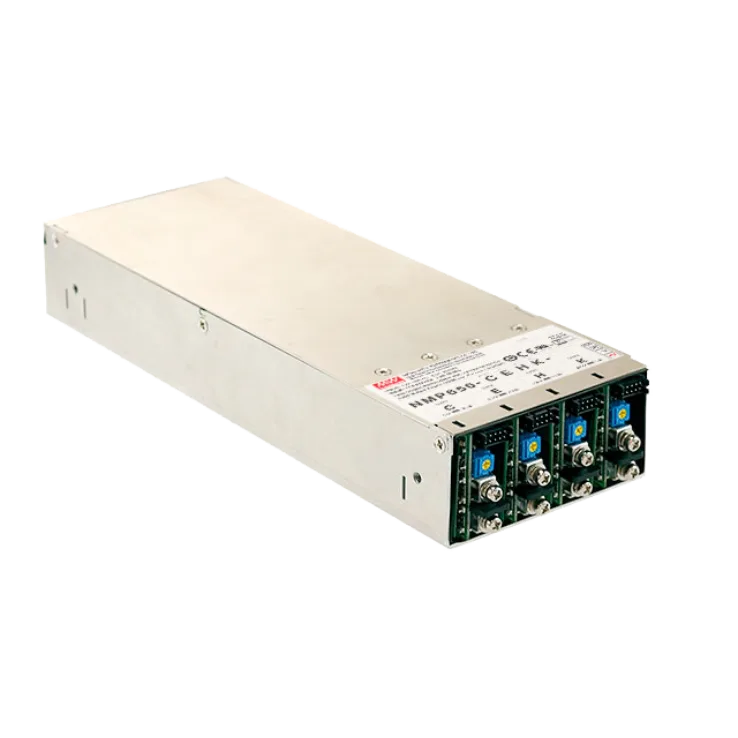

NMP Series Medical Grade Power Supplies 650–1200W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Medical Grade Power Supplies |
NMP Series Features:
Medical 2xMOPP ITE safety approvals
1U low profile
Other features:
- universal AC input / Full range
- Output voltage and current programmable
- Cooling by fan with fan alarm function
- 5 years warranty/ul>
| Wattage | 650 | 1200 |
|---|---|---|
| Input Voltage | 90-264VAC, 120-370VDC | 90-264VAC, 120-370VDC |
| Output Voltage | 5-48 | 5-48 |
| Output Voltage Options | Multi | Multi |
| Dimensions | 250 x 89 x 41 | 250 x 127 x 41 |
| Working Temperature | -30 - +70°C | |
| Safety Standards | ANSI/AAMI ES60601-1, Ed. 3.1,UL62368-1; TUV EN60601-1, Ed. 3.1,EN62368-1; IEC 60601-1, Ed. 3.1, IEC 62368-1,TUVIEC60950-1; EAC TP TC 004 approved | |
| EMC Standards | EN55032 (CISPR32) / Design refer to EN55011 (CISPR11) , EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 | |
