MEAN WELL

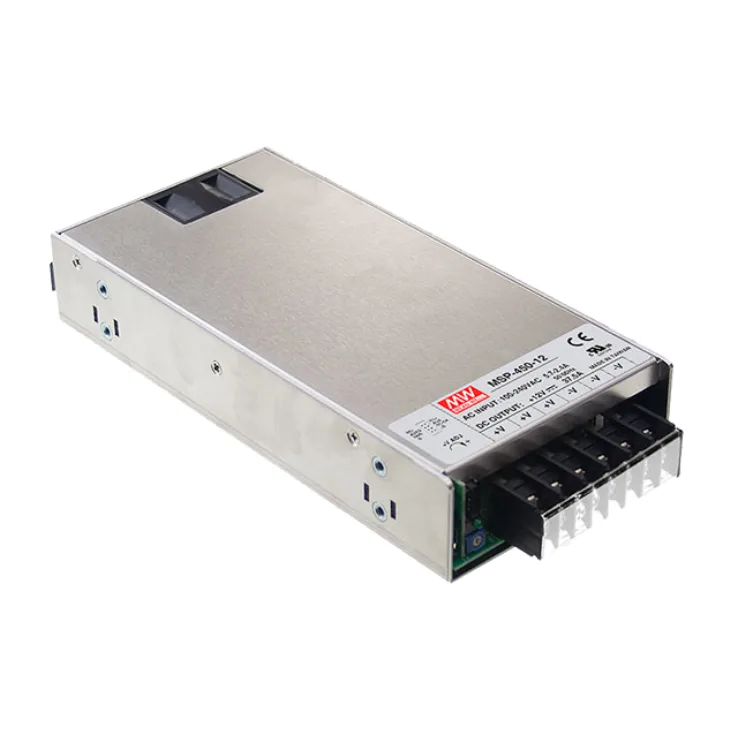

MSP-450 Series Medical Grade Power Supplies 297–450W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Medical Grade Power Supplies |
MSP-450 Series Features:
Medical safety approved (MOOP level)
Built-in active PFC function PF>0.95
Protections: Short circuit/ Overload/ Over voltage/Over temperature
Other features:
- Universal AC input/ Full range
- High efficiency up to 89.5%
- No load power consumption <0.5W
- Withstand 300VAC surge
- Built-in constant current limiting circuit
- Built-in cooling Fan ON-OFF control
- Built-in DC OK signal
- Stand by 5V@0.3A
- Built-in remote ON-OFF control
- Built-in remote sense function
- 5 years warranty
| Wattage | 297 | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
|---|---|---|---|---|---|---|---|---|
| Input Voltage | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC |
| Output Current | 0~90 | 0~90 | 0~60 | 0~37.5 | 0~30 | 0~18.8 | 0~12.5 | 0~9.5 |
| Output Voltage | 3.3 | 5 | 7.5 | 12 | 15 | 24 | 36 | 48 |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single |
| DC output adjustment | 2.8~3.8 | 4.3~5.8 | 6.8~9 | 10.2~13.8 | 13.5~18 | 21.6~28.8 | 28.8~39.6 | 40.8~55.2 |
| Dimensions | 218x 105x 41 | 218x 105x 41 | 218x 105x 41 | 218x 105x 41 | 218x 105x 41 | 218x 105x 41 | 218x 105x 41 | 218x 105x 41 |
| Working Temperature | -20~+70°C | |||||||
| Safety Standards | ANSI/AAMI ES60601-1, IEC60601-1 approved | |||||||
| EMC Standards | Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN60601-1-2 | |||||||
