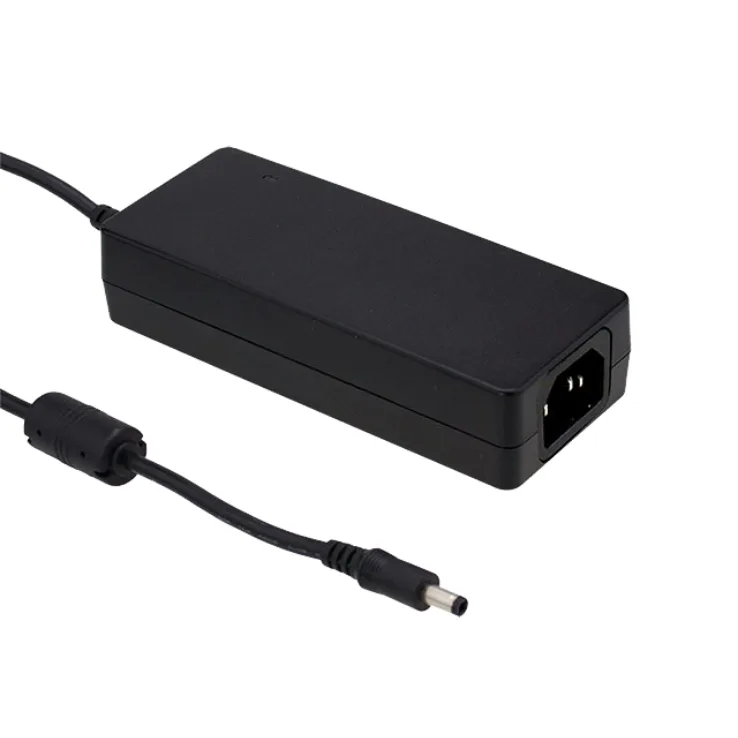

Mean Well GSM90A Series Medical Grade Power Supplies 80–90W

Download Datasheet
Models:
  • GSM90A12
  • GSM90A15
  • GSM90A19
  • GSM90A24
  • GSM90A48
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

GSM90A Series Features:

No load power consumption <0.15W

Medical safety approved (2x MOPP between primary to secondary)

Low leakage current <100µA

Protections: Short circuit / Overload / Over voltage / Over temperature

Other features:

  • Universal AC input / Full range
  • High efficiency
  • 100% full load burn-in test
  • Energy efficiency level VI
  • 3 pole AC inlet IEC320-C14
  • Fully enclosed plastic case
  • Medical safety approved (MOPP level)
  • Class I power (with earth pin)
  • Built-in active PFC function
  • LED indicator for power on
  • EU ErP and meet CoC Version 5
  • Meet EISA 2007
  • 3 years warranty
Wattage 80 90 90 90 90
Input Voltage 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC
Output Current 6.67A 6A 4.74A 3.75A 1.87A
Output Voltage 12 15 19 24 48
Output Voltage Options Single Single Single Single Single
Dimensions 145x 60x 32 145x 60x 32 145x 60x 32 145x 60x 32 145x 60x 32
Working Temperature -30B0C-+70B0C
Safety Standards ANSI/AAMI ES60601-1, TUV EN60601-1 approved
EMC Standards Compliance to EN55011 (CISPR11) class B, EN61000-3-2,3, FCC PART 15 class B. Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, EN61204-3 medical level, criteria A
