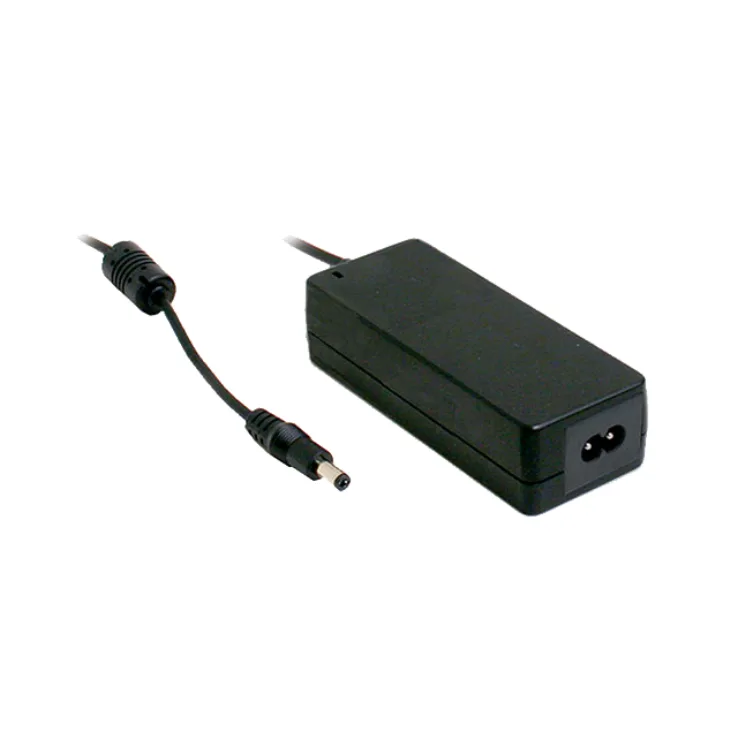

GSM60B Series Medical Grade Power Supplies 30–60W

Download Datasheet
Models:
  • GSM60B05-P1J
  • GSM60B07-P1J
  • GSM60B09-P1J
  • GSM60B12-P1J
  • GSM60B15-P1J
  • GSM60B18-P1J
  • GSM60B24-P1J
  • GSM60B48-P1J
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

GSM60B Series Features:

No load power consumption <0.1W

Medical safety approved (2x MOPP between primary to secondary)

Low leakage current <50µA

Protections: Short circuit / Overload / Over voltage / Over temperature

Other features:

  • Universal AC input / Full range
  • High efficiency
  • 100% full load burn-in test
  • Energy efficiency level VI (Except 5~9V for level V)
  • 2 pole AC inlet IEC320-C14
  • Fully enclosed plastic case
  • Medical safety approved (MOPP level)
  • Class II power (with earth pin)
  • Built-in active PFC function
  • LED indicator for power on
  • EU ErP and meet CoC Version 5
  • Meet EISA 2007 (Energy Independence and Security Act)
  • 3 years warranty
Wattage 30 45 54 60 60 60 60 60
Input Voltage 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC
Output Current 6A 6A 6A 5A 4A 3.33A 2.5A 1.25A
Output Voltage 5 7.5 9 12 15 18 24 48
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment 120-370V 120-370V 120-370V 120-370V 120-370V 120-370V 120-370V 120-370V
Dimensions 125x 50x 31.5 125x 50x 31.5 125x 50x 31.5 125x 50x 31.5 125x 50x 31.5 125x 50x 31.5 125x 50x 31.5 125x 50x 31.5
Working Temperature -30-+60°C
Safety Standards ANSI/AAMI ES60601-1-11, TUV EN60601-1/60601-1-11 approved
EMC Standards Compliance to EN55011 (CISPR11) class B, EN61000-3-2,3, FCC PART 15 class B, CAN ICES-3 (B)/NMB-3(B) Complaicnce to EN61000-4-2,3,4,5,6,8,11, EN5502, EN60601-1-2, EN61204-3 medical level, criteria A
