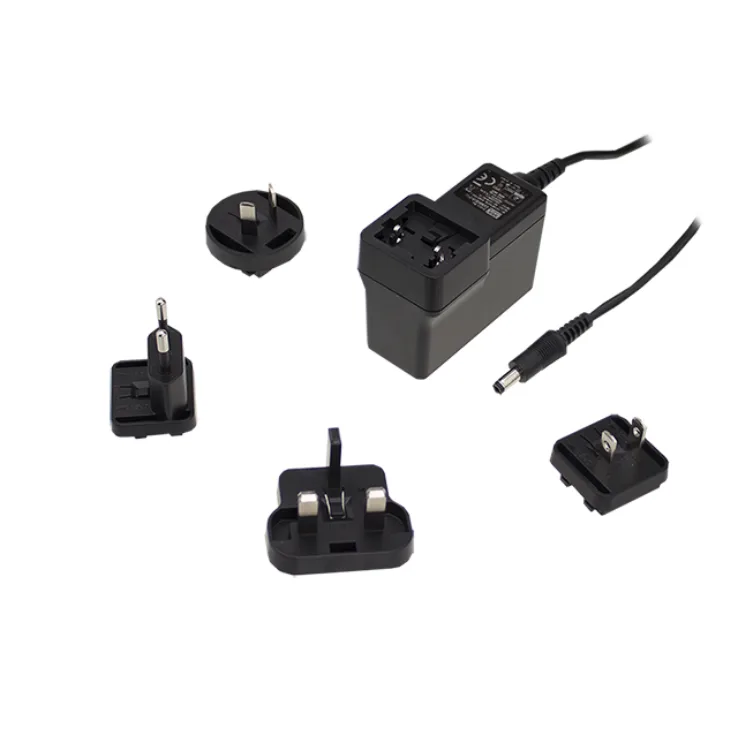

Mean Well GEM60I Series Medical Grade Power Supplies 60W

Download Datasheet
Models:
  • GEM60I05-P1J
  • GEM60I07-P1J
  • GEM60I09-P1J
  • GEM60I12-P1J
  • GEM60I15-P1J
  • GEM60I18-P1J
  • GEM60I24-P1J
  • GEM60I48-P1J
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

GEM60I Series Features:

Ultra slim, compact size

Extremely low leakage current

Other features:

  • Energy efficiency level VI (except 5-9V for level V)
  • -Class II power
  • Protections: Short circuit/Overload/Over voltage
  • 3 years warranty
Wattage 60 60 60 60 60 60 60 60
Input Voltage 80-264VAC, 113-370VDC 80-264VAC, 113-370VDC 80-264VAC, 113-370VDC 80-264VAC, 113-370VDC 80-264VAC, 113-370VDC 80-264VAC, 113-370VDC 80-264VAC, 113-370VDC 80-264VAC, 113-370VDC
Output Current 6A 6A 5.5A 4.5A 4A 3.33A 2.5A 1.25A
Output Voltage 5 7.5 9 12 15 18 24 48
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment N/A N/A N/A N/A N/A N/A N/A N/A
Dimensions 75.5 x 39.1 x 56.2 75.5 x 39.1 x 56.2 75.5 x 39.1 x 56.2 75.5 x 39.1 x 56.2 75.5 x 39.1 x 56.2 75.5 x 39.1 x 56.2 75.5 x 39.1 x 56.2 75.5 x 39.1 x 56.2
Working Temperature -30 - +70C
Safety Standards TUV EN60601-1/EN60601-1-11,ANSI/ AAMI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22 3 edition, approved rd EAC TP TC 004
EMC Standards EN55011 (CISPR11),FCC PART 18, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11
