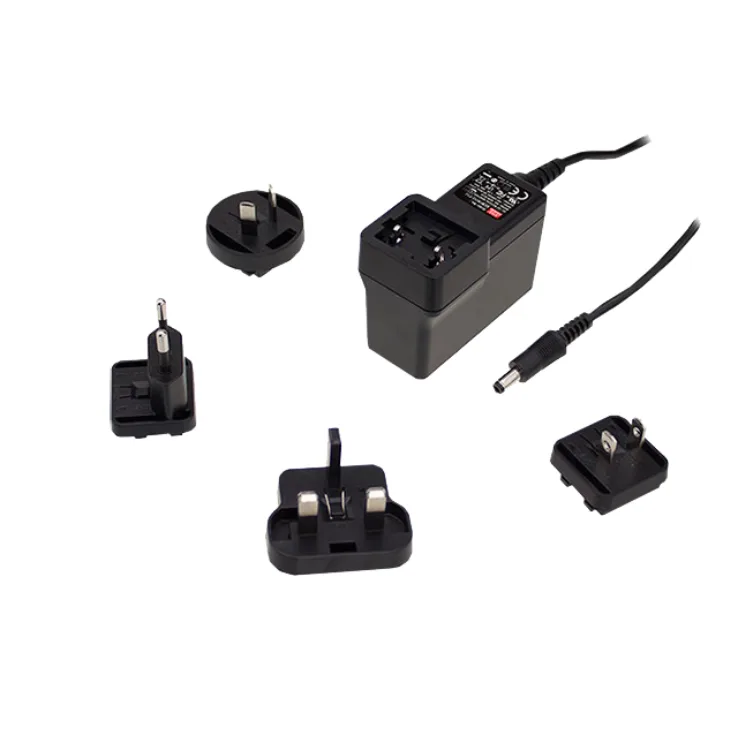

GEM18I Series Medical Grade Power Supplies 15–18W

Download Datasheet
Models:
  • GEM18I05-P1J
  • GEM18I09-P1J
  • GEM18I12-P1J
  • GEM18I15-P1J
  • GEM18I18-P1J
  • GEM18I24-P1J
  • GEM18I48-P1J
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

GEM18I Series Features:

Fully encapsulated with IP67 level

Protections: Short circuit/ Over Current/ Over voltage/ Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full Range
  • High efficiency up to 91%
  • Cooling by free air convection
  • Built-in active PFC function
  • Built-in 3 in 1 dimming function (0-10Vdc or PWM signal or resistance)
  • Fully isolated plastic case
  • Class II power unit, no FG
  • Suitable for dry, damp, wet location
  • No load power consumption <0.15W
  • 5 years warranty
Wattage 15 18 18 18 18 18 18
Input Voltage 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC
Output Current 3A 2A 1.5A 1.2A 1A 0.75A 0.38A
Output Voltage 5 9 12 15 18 24 48
Output Voltage Options Single Single Single Single Single Single Single
Dimensions 75.5x 39.1x 56.2 75.5x 39.1x 56.2 75.5x 39.1x 56.2 75.5x 39.1x 56.2 75.5x 39.1x 56.2 75.5x 39.1x 56.2 75.5x 39.1x 56.2
Working Temperature -20-+50°C
Safety Standards ANSI/AAMI ES60601-1 / 60601-1-11, TUV EN60601-1 / 60601-1-11 approved
EMC Standards Compliance to EN55011 Class B, EN61000-3-2,3, FCC PART 15 / CISPR22 Class B,Compliance to EN61000-4-2,3,4,5,6,8,11 , light industry level, criteria A.
