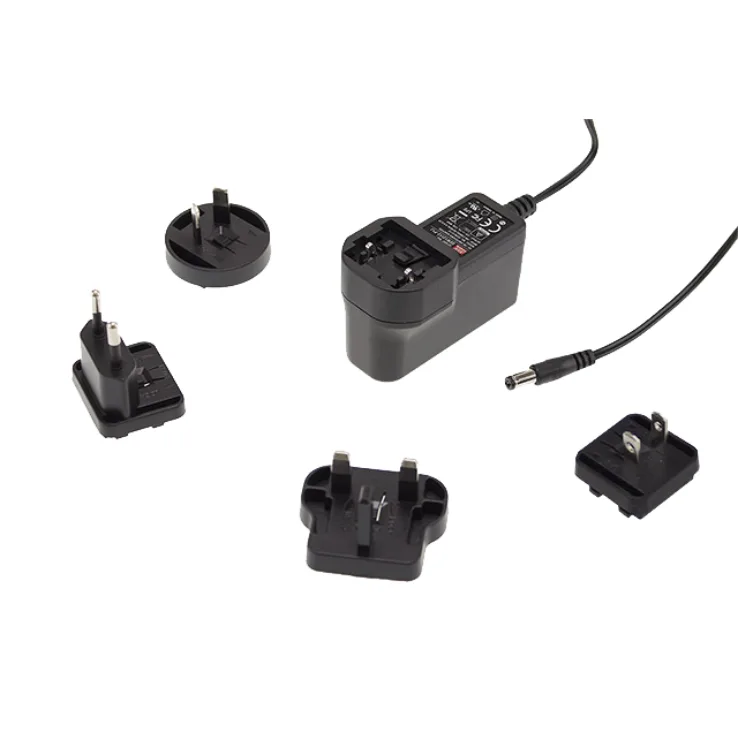

GEM12I Series Medical Grade Power Supplies 12W

Models:	GEM12I05-P1J GEM12I07-P1J GEM12I09-P1J GEM12I12-P1J GEM12I15-P1J GEM12I18-P1J GEM12I24-P1J GEM12I48-P1J
Manufacturer:	MEAN WELL
Type:	Medical Grade Power Supplies

GEM12I Series Features:

Medical safety approved (2xMOPP) according to AAMI/ANSI ES60601-1/ES60601-1-11 and IEC60601-1

Interchangeable AC plugs (plug kit sold seperately)

Energy efficiency level VI

Protections: Short circuit/ Overload/ Over voltage

Other features:

Spec	GEM12I05-P1J	GEM12I07-P1J	GEM12I09-P1J	GEM12I12-P1J	GEM12I15-P1J	GEM12I18-P1J	GEM12I24-P1J	GEM12I48-P1J
Wattage	12	12	12	12	12	12	12	12
Input Voltage	80-264VAC	80-264VAC	80-264VAC	80-264VAC	80-264VAC	80-264VAC	80-264VAC	80-264VAC
Output Current	2.4A	1.6A	1.33A	1A	0.8A	0.66A	0.5A	0.25A
Output Voltage	5	7.5	9	12	15	18	24	48
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single
Dimensions	73.9x 39x 48.5	73.9x 39x 48.5	73.9x 39x 48.5	73.9x 39x 48.5	73.9x 39x 48.5	73.9x 39x 48.5	73.9x 39x 48.5	73.9x 39x 48.5
Working Temperature	-20-+70°C
Safety Standards	IEC60601-1, TUV EN60601-1/EN60601-1-11, AAMI/ANSI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22 3rd edition approved
EMC Standards	Compliance to EN55011 class B, EN61000-3-2-3, FCC PART 15 / CISPR22 class B, Compliance to EN61000-4,-2,3,4,5,6,8,11, light industry level, criteria A
