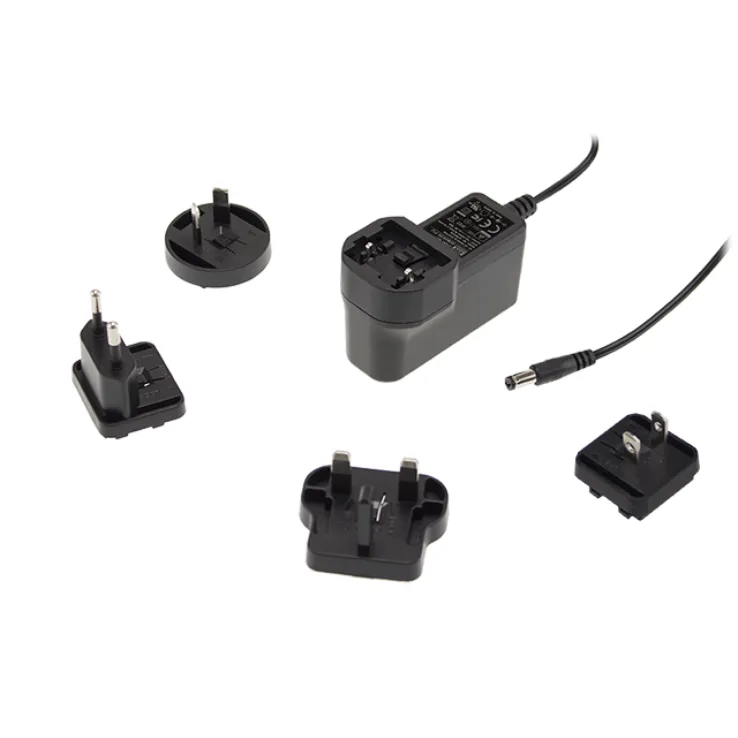

Mean Well GEM06I Series Medical Grade Power Supplies 6W

Download Datasheet
Models:
  • GEM06 05-P1J
  • GEM06 05-USB
  • GEM06 06-P1J
  • GEM06 07-P1J
  • GEM06 09-P1J
  • GEM06 12-P1J
  • GEM06 15-P1J
  • GEM06 18-P1J
  • GEM06 24-P1J
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

GEM06I Series Features:

Interchangeable AC plugs (plug kit sold sperately)

Medical safety approved (2 x MOPP) accroding to ANSI/AAMI ES60601-1/ES60601-1-11,EN60601-1/EN60601-1-11

Other features:

  • Extremely low leakage current
  • Energy efficiency LevelV
  • -20C~+70C wide range working temperature
  • Protections: Short circuit / Overload / Over voltage
  • Class power (no earth pin)
  • Fully enclosed plastic case
  • 3 years warranty
Wattage 6 6 6 6 6 6 6 6 6
Input Voltage 80~264VAC, 113~370VDC 80~264VAC, 113~370VDC 80~264VAC, 113~370VDC 80~264VAC, 113~370VDC 80~264VAC, 113~370VDC 80~264VAC, 113~370VDC 80~264VAC, 113~370VDC 80~264VAC, 113~370VDC 80~264VAC, 113~370VDC
Output Current 1.2A 1.2A 1A 0.8A 0.66A 0.5A 0.4A 0.33A 0.25A
Output Voltage 5 5 6 7.5 9 12 15 18 24
Output Voltage Options Single Single Single Single Single Single Single Single Single
Dimensions 73.9 x 39 x 48.5 73.9 x 39 x 48.5 73.9 x 39 x 48.5 73.9 x 39 x 48.5 73.9 x 39 x 48.5 73.9 x 39 x 48.5 73.9 x 39 x 48.5 73.9 x 39 x 48.5 73.9 x 39 x 48.5
Working Temperature -20C - +70C
Safety Standards TUV EN60601-1/EN60601-1-11,ANSI/ AAMI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22 3 edition,approvedrdEAC TP TC 004GEM06 05-USB without EN60601-1-11 , ANSI/ AAMII ES60601-1-11
EMC Standards EN55011 (CISPR11),FCC PART 15 and 18/ CISPR22, EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
