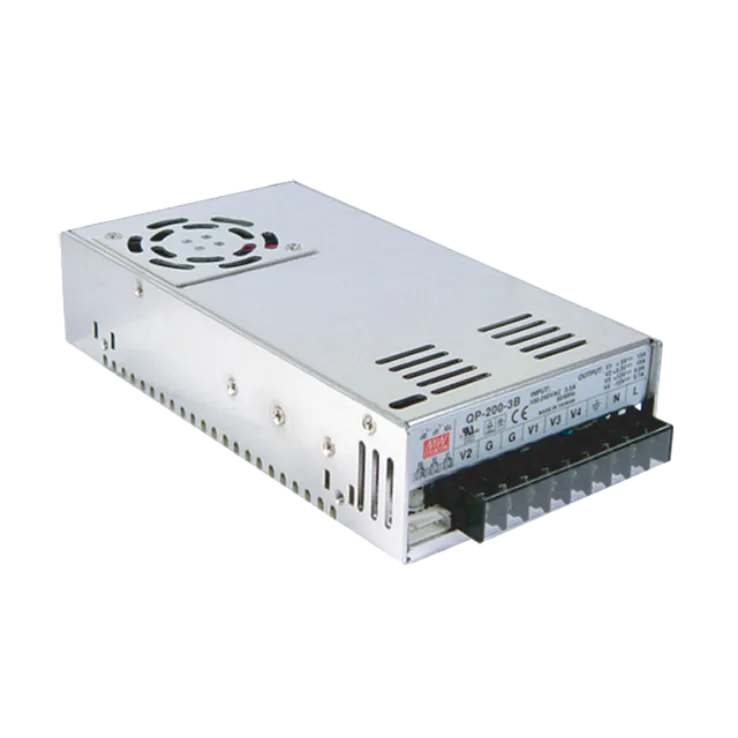

QP-200 Series Enclosed Power Supplies 200W

Download Datasheet
Models:
  • QP-200-3A
  • QP-200-3B
  • QP-200-3C
  • QP-200-3D
  • QP-200-3E
  • QP-200D
  • QP-200F
Manufacturer: Mean Well
Type: Enclosed Power Supplies

QP-200 Series Features:

Universal AC input / Full range

Protections: Short circuit/ Overload/ Over voltage/ Over Temperature

Other features:

  • PF>0.98@115VAC; >0.95@230VAC
  • Forced air cooling by built-in DC fan
  • Over temperature protection built-in
  • 100% full load burn-in test
  • 3 years warranty
Wattage 200 200 200 200 200 200 200
Input Voltage 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC
Output Current 3.0~20 / 0.0~20 /0.5~8.0 / 0.0~1.0 3.0~20 / 0.0~20 / 0.5~8.0 / 0.0~1.0 3.0~20 / 0.0~20 / 0.5~7.0 / 0.0~1.0 3.0~20 / 0.0~20 / 0.4~6.0 / 0.0~1.0 3.0~20 / 0.0~20 / 0.4~6.0 / 0.0~1.0 3.0~20 / 0.0~7.0 / 0.4~6.0 / 0.0~1.0 3.0~20 / 0.0~6.0 / 0.4~6.0 / 0.0~1.0
Output Voltage 5, 3.3, 12, -5 5, 3.3, 12, -12 5, 3.3, 15, -15 5, 3.3, 24, -12 5, 3.3, 24, -15 5, 12, 24, -12 5, 15, 24, -15
Output Voltage Options Quad Quad Quad Quad Quad Quad Quad
DC output adjustment CH1 & 2: -5%~+10% rated output voltage CH1 & 2: -5%~+10% rated output voltage CH1 & 2: -5%~+10% rated output voltage CH1 & 2: -5%~+10% rated output voltage CH1 & 2: -5%~+10% rated output voltage CH1 & 2: -5%~+10% rated output voltage CH1 & 2: -5%~+10% rated output voltage
Dimensions 215 x 115 x 50 215 x 115 x 50 215 x 115 x 50 215 x 115 x 50 215 x 115 x 50 215 x 115 x 50 215 x 115 x 50
Working Temperature -25~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11
