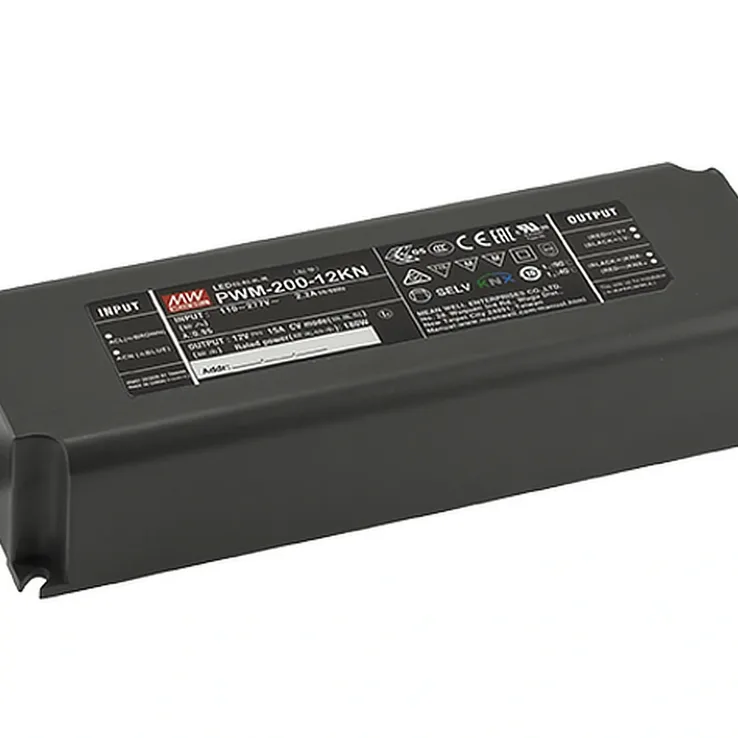

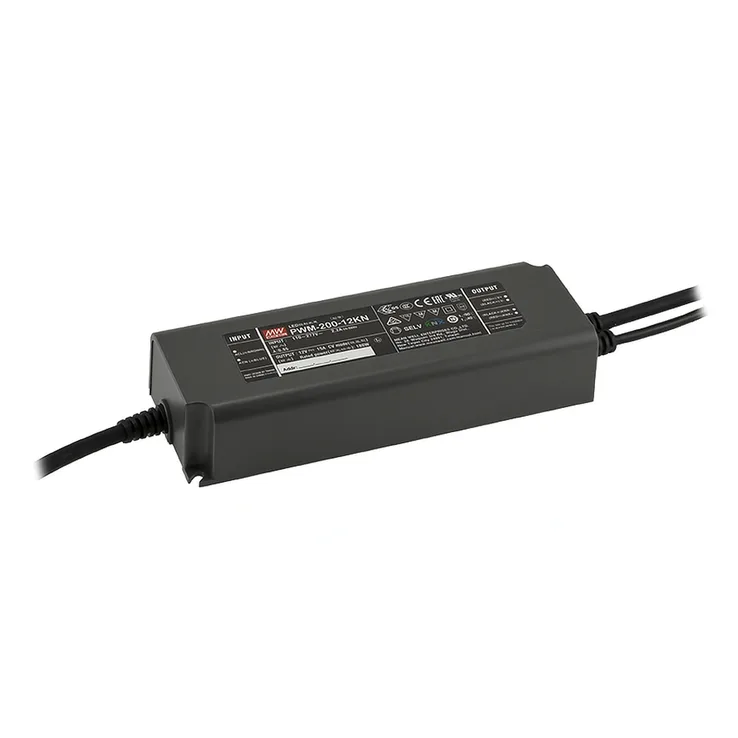

PWM-200KN Series KNX LED Drivers 180–200.1W

Models:	PWM-200-12KN PWM-200-24KN PWM-200-36KN PWM-200-48KN
Manufacturer:	MEAN WELL
Type:	KNX LED Drivers

PWM-200KN Series Features:

PWM-200KN series is a 200 W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the colour temperature and the brightness homogeneity when driving all kinds of LED strips and constant voltage LED bulbs.

Features:

Constant voltage PWM style output with user changeable frequency up to 4KHz compliant IEEE1789-2015 and EU Ecodesign SVM requirement
Min.dimming level 0.01%
Plastic housing with class II design
Standby power consumption <0.5W
Support KNX Data Secure
No need KNX-DALI gateway
Typical lifetime>50000 hours
5 years warranty

Spec	PWM-200-12KN	PWM-200-24KN	PWM-200-36KN	PWM-200-48KN
Wattage	180	199.2	199.8	200.1
Input Voltage	100~305VAC	100~305VAC	100~305VAC	100~305VAC
Output Current	15	8.3	5.55	4.17
Output Voltage	12	24	36	48
Dimensions	1956839.5mm	1956839.5mm	1956839.5mm	1956839.5mm
Working Temperature	Tcase=-40~+85°C
Safety Standards	UL8750 (type "HL"), CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independant, EAC TP TC 004, GB19510.1, GB19510.14 approved; Design refer to BS EN/EN60335-1, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations.
EMC Standards	Compliant to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load>60%); BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020
