MEAN WELL

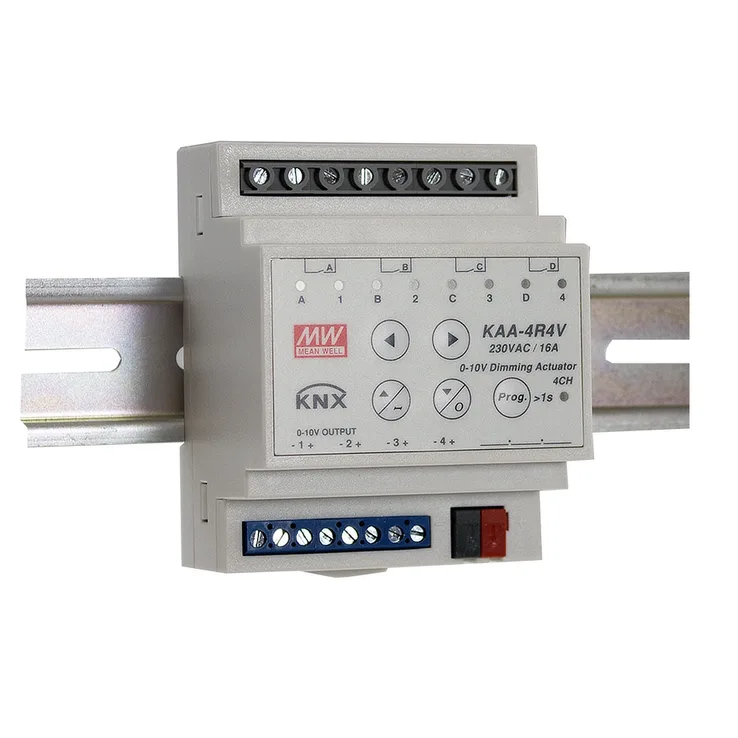

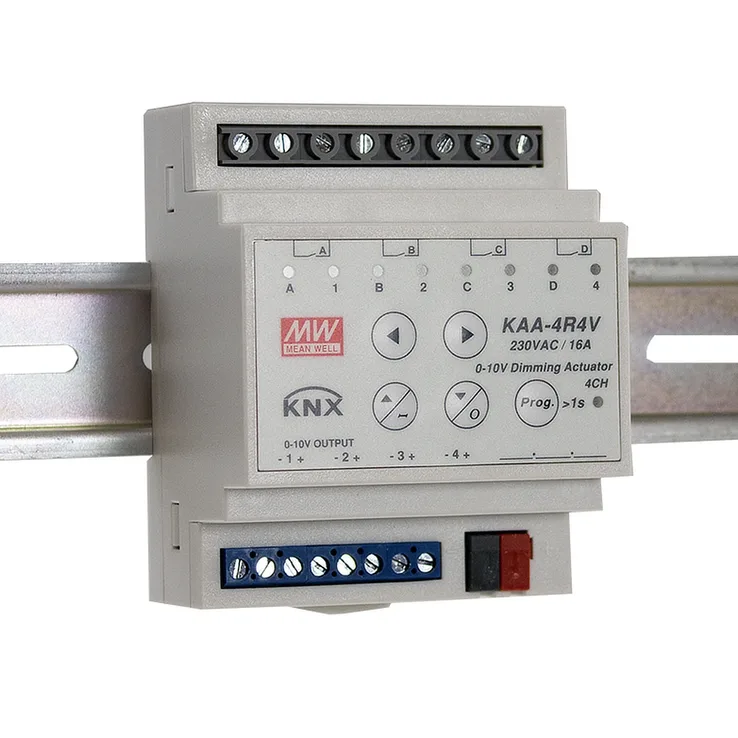

KAA-4R4V-S Series KNX LED Drivers
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | KNX LED Drivers |
KAA-4R4V-S Series Features:
The KAA-4R4V-S dimming actuator is a 4 channels device with high quality independent latching relay to turn on or off, which is suitable for MEANWELL all kinds of LED drivers,
Features:
- Dimming and switching LED driver and conventional electronic ballast
- LED Indicator for each channel
- Linear or logarithmic dimming curve programable via ETS software
- Support KNX data secure
- Manual control via push button on panel
- Programmable various time and scene function
- 3 years warranty
| Working Temperature | -30~45°C |
|---|---|
| Safety Standards | BS EN/EN50491-3, BS EN/EN60669-1, BS EN/EN60669-2-1, BS EN/EN60669-2-5, EAC TP TC 004 approved |
| EMC Standards | Compliance to BS EN/EN50491-5-1, -2,-3, BS EN/EN500090-2-2, BS EN/EN60669-2-1, BS EN/EN60669-2-5, BS EN/EN630445-5,-1,-2,-3, EAC TP TC 020 |
