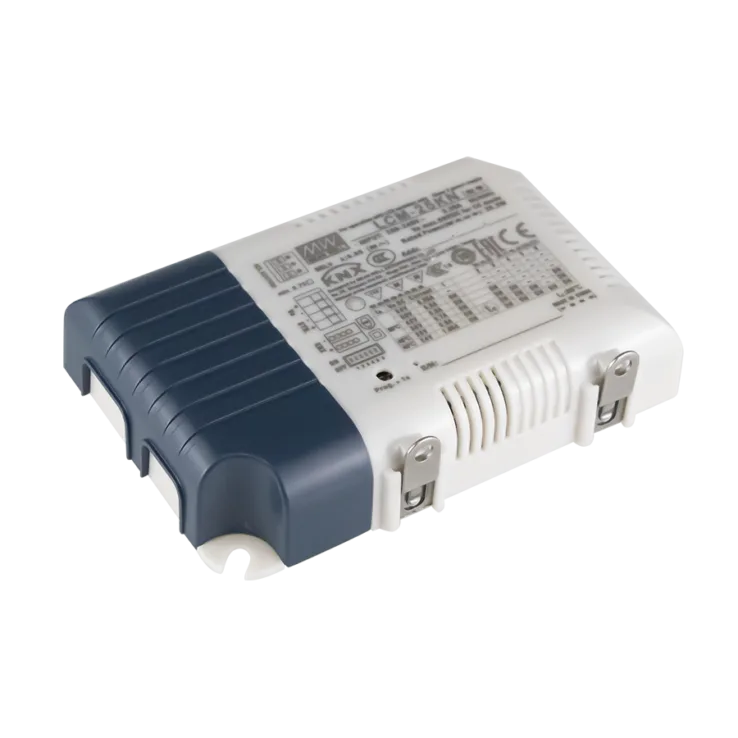

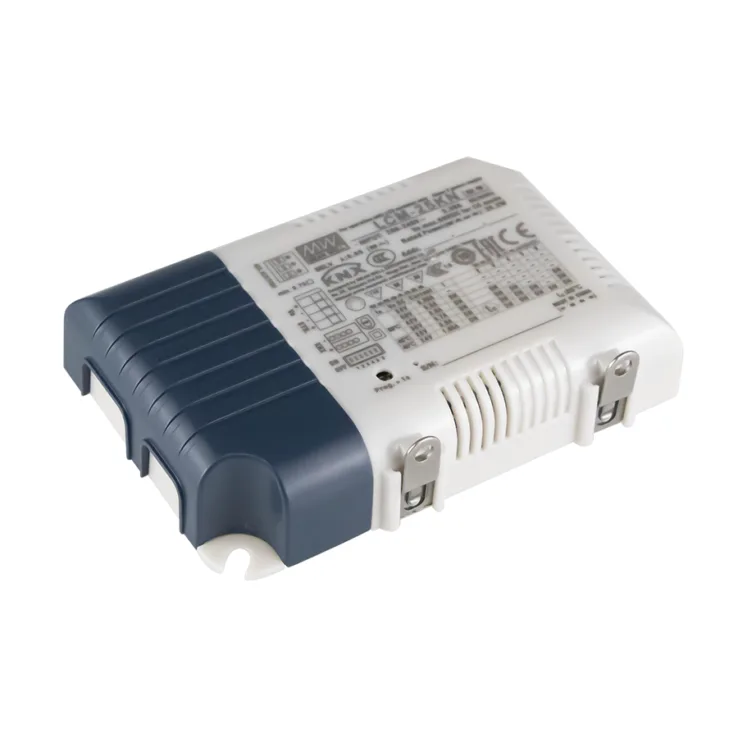

LCM-KN Series KNX LED Drivers 25–60W

Download Datasheet
Models:
  • LCM-25KN
  • LCM-40KN
  • LCM-60KN
Manufacturer: Mean Well
Type: KNX LED Drivers

LCM-KN Series Features:

Built-in DALI interface and push dimming function

Output current level selectable by DIP S.W.

Built-in active PFC function

Protections: Short circuit / Over voltage / Over temperature

Other features:

  • 180~295VAC input only
  • Cooling by free air convection
  • Temperature compensation function by external NTC
  • No load power consumption <1.2W@AC always on
  • Fully isolated plastic case
  • Class power unit, no FG
  • Built-in 12V/50mA auxiliary output
  • Suitable for LED lighting applications
  • Power supplies synchronization function up to 10 units
  • 3 years warranty
Wattage 25 40 60
Input Voltage 180~277VAC, 220~392VDC 180~277VAC, 220~392VDC 180~277VAC, 220~392VDC
Output Current 350~1050mA 350~1050mA 500~1400mA
Output Voltage Options Single Single Single
DC output adjustment 6-54V 6-54V 6-54V
Dimensions 105 x 68 x 23 105 x 68 x 23 105 x 68 x 23
Working Temperature -30 - +85°C
Safety Standards CSA C22.2 No.250.13-12,GB19510.14,GB19510.1,ENEC EN61347-1, EN61347-2-13, EN62384 independent,EAC TP TC 004 approved
EMC Standards KNX certification, Compliance to EN55015, EN61000-3-2 Class C(@load50%) ; EN61000-3-3;b 'GB17625.1,GB17743, EAC TP TC 020, Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level surge immunity Line-Line 2KV , EAC TP TC 020
