MEAN WELL

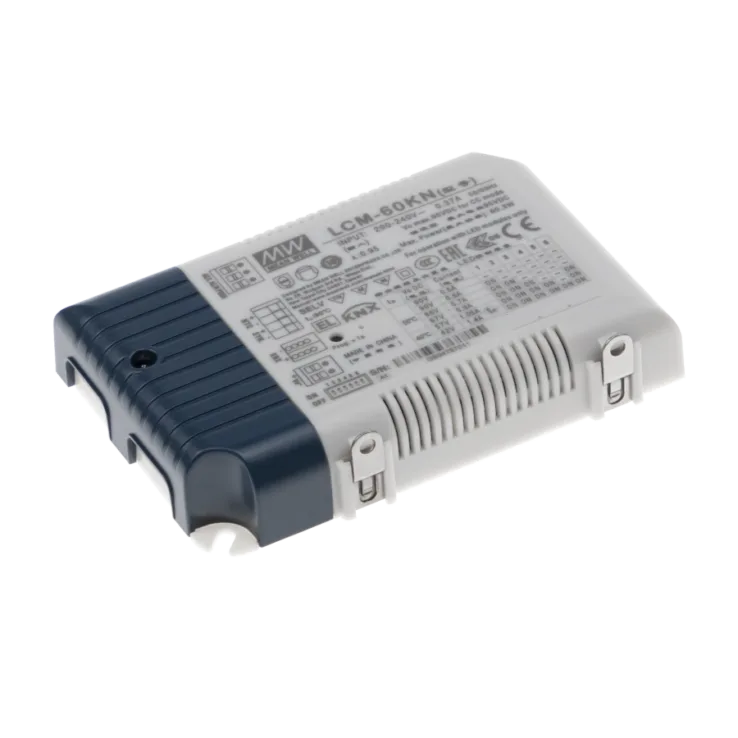

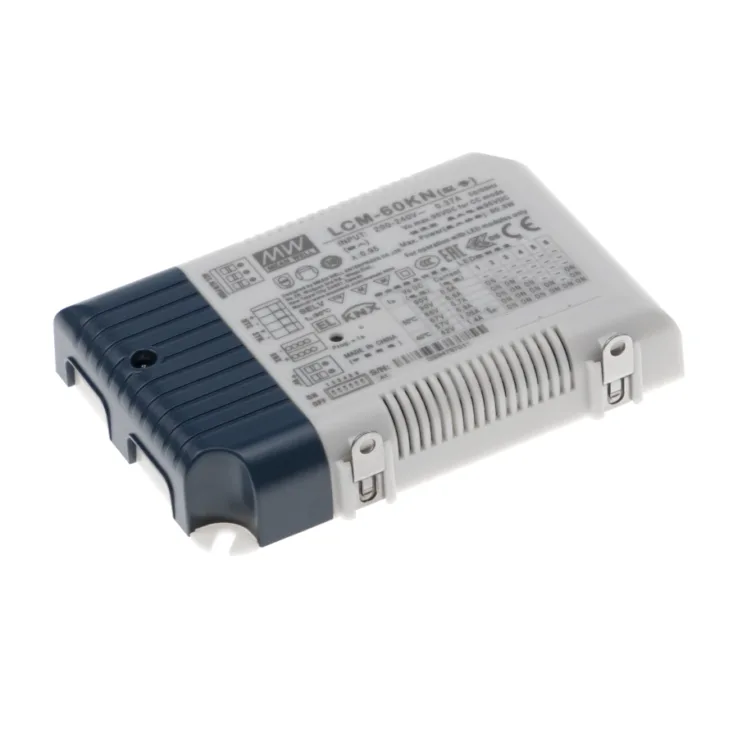

LCM-60KN Series KNX LED Drivers
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | KNX LED Drivers |
LCM-60KN Series Features:
Built-in DALI interface and push dimming function
Output current level selectable by DIP S.W.
Built-in active PFC function
Protections: Short circuit / Over voltage / Over temperature
Other features:
- 180~295VAC input only
- Cooling by free air convection
- Temperature compensation function by external NTC
- No load power consumption <1.2W@AC always on
- Fully isolated plastic case
- Class power unit, no FG
- Built-in 12V/50mA auxiliary output
- Suitable for LED lighting applications
- Power supplies synchronization function up to 10 units
- 3 years warranty
| Working Temperature | -30 - +85°C |
|---|---|
| Safety Standards | CSA C22.2 No.250.13-12,GB19510.14,GB19510.1,ENEC EN61347-1, EN61347-2-13, EN62384 independent,EAC TP TC 004 approved |
| EMC Standards | KNX certification, Compliance to EN55015, EN61000-3-2 Class C(@load50%) ; EN61000-3-3;b 'GB17625.1,GB17743, EAC TP TC 020, Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level surge immunity Line-Line 2KV , EAC TP TC 020 |
