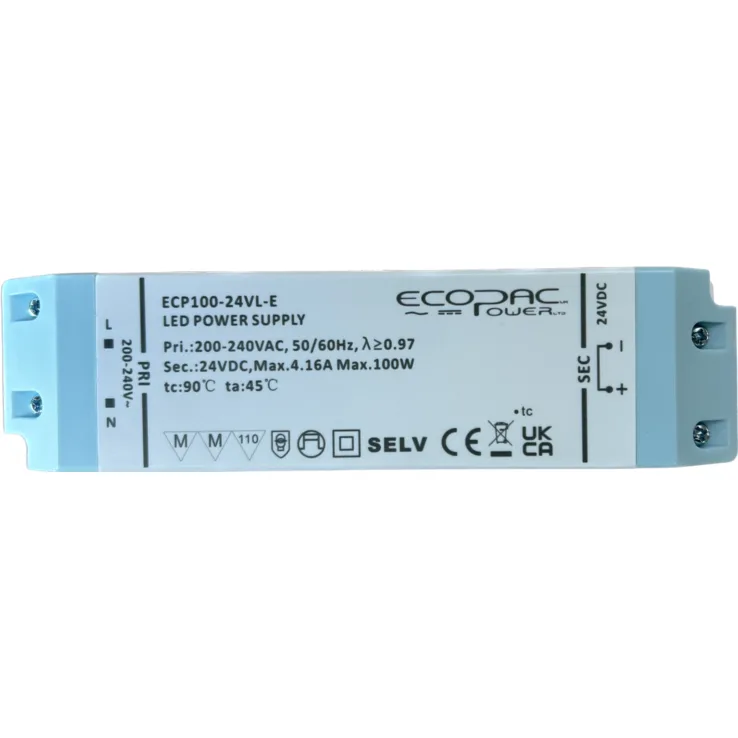

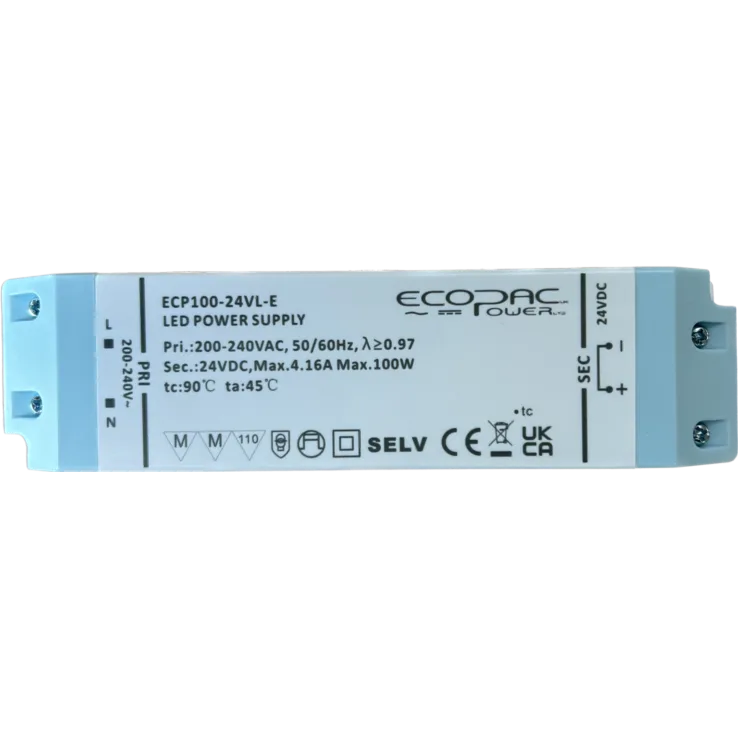

ECP100-VL-E Series Non-dim Constant Voltage LED Drivers 100W

Models:	ECP100-12VL-E ECP100-24VL-E
Manufacturer:	Ecopac Power
Type:	Constant Voltage LED Drivers

ECP100-VL-E Series Features:

Features:
• Low Profile Constant Voltage Driver
• AC input: 200-240VAC
• Built in PFC Function, Flicker Free
• Efficiency up to 88%
• Protections: short circuit/ over loading/
over current/ over temperature
• Full protection plastic housing easy installation
• Cooling by free air convection
• Suitable for profile lighting and lightboxes

Spec	ECP100-12VL-E	ECP100-24VL-E
Wattage	100	100
Input Voltage	200~240Vac	200~240Vac
Output Current	8.33	4.17
Output Voltage	12	24
Output Voltage Options	Single	Single
Dimensions	170 x 44.5 x 28.2mm	170 x 44.5 x 28.2mm
Working Temperature	-20~+45°C (Refer to derating curve), +85°C (max case temp.)
Safety Standards	EN61347-1, EN61347-2-13
EMC Standards	EN55015, EN61000-3-2; EN61000-3-3; EN61547
