Ecopac Power Ecopac Power logo

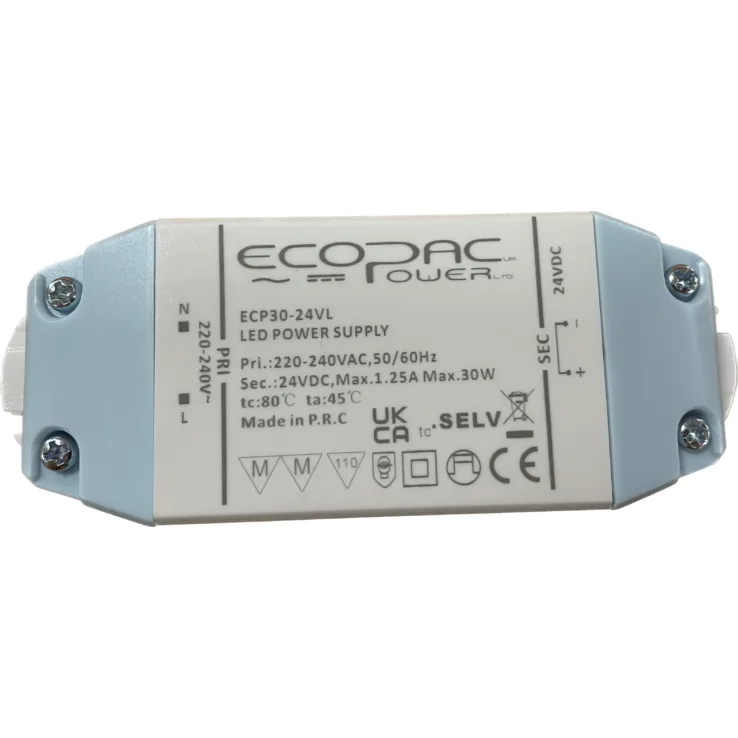

ECP30-VL Non-dim Constant Voltage LED Drivers 30W

Download Datasheet
Models:
  • ECP30-12VL
  • ECP30-24VL
Manufacturer: Ecopac Power
Type: Constant Voltage LED Drivers

ECP30-VL Features:

30W Constant Voltage Driver

Features:
Low Profile Constant Voltage Driver
AC input: 220-240VAC
Built in PFC Function, Flicker Free
Efficiency up to 86%
Protections: short circuit / overloading / over current / over temperature
Full protection plastic housing easy installation
Cooling by free air convection
Suitable for profile lighting and lightboxes

Wattage 30 30
Input Voltage 220-240VAC 220-240VAC
Output Current 2.5A 1.25A
Output Voltage 12V 24V
Dimensions 123 x 44.6 x 19.2 mm 123 x 44.6 x 19.2 mm
Working Temperature -20~+45°C (Refer to derating curve), +80°C (max case temp.)
Safety Standards EN613471, EN61347-2-13
EMC Standards EN613471, EN61347-2-13 EN61000-3-2; EN61000-3-3; EN61547
