MEAN WELL

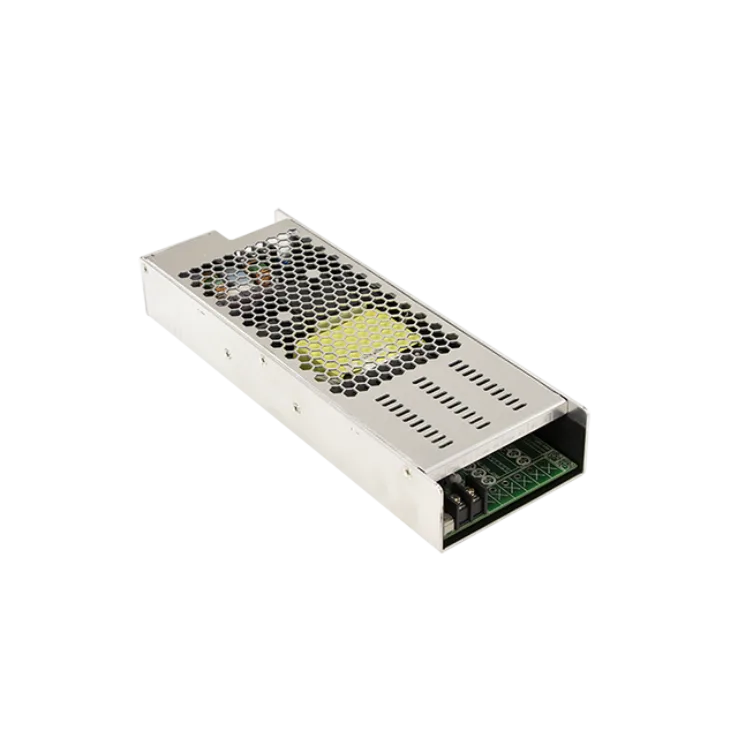

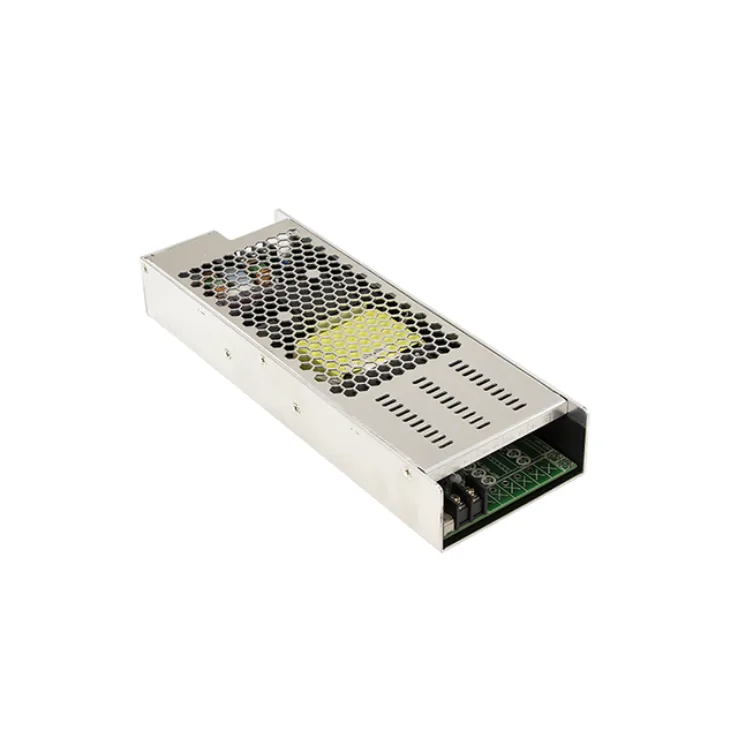

UMP-400 Series Modular Power Supplies 400W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Modular Power Supplies |
UMP-400 Series Features:
Universal AC input/Full range
Fanless design, 400W convention
Other features:
- Modular design, optional configuration available
- Slim and 1U low profile
- no minimum load required
- -30 ~ +70C working temperature
- LED indicator for power on
- 3 years warranty
| Wattage | 400 | 400 |
|---|---|---|
| Input Voltage | 90-264VAC, 127-370VDC | 90-264VAC, 127-370VDC |
| Output Current | 16.7A | 8.3A |
| Output Voltage | 24V | 48V |
| Output Voltage Options | Single | Single |
| DC output adjustment | 22.8-25.2V | 45.6-50.4V |
| Dimensions | 250 x 89 x 37 | 250 x 89 x 37 |
| Working Temperature | -30 - +70°C | |
| Safety Standards | EAC TP TC 004; UL62368-1, Dekra seal EN62368-1 approved; Design refertoANSI/AAMI ES60601-1, TUV EN60601-1, IEC 60601-1 (3" edition) | |
| EMC Standards | EN55032 (CISPR32) / Design refer to EN55011 (CISPR11) , EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 | |
