MEAN WELL

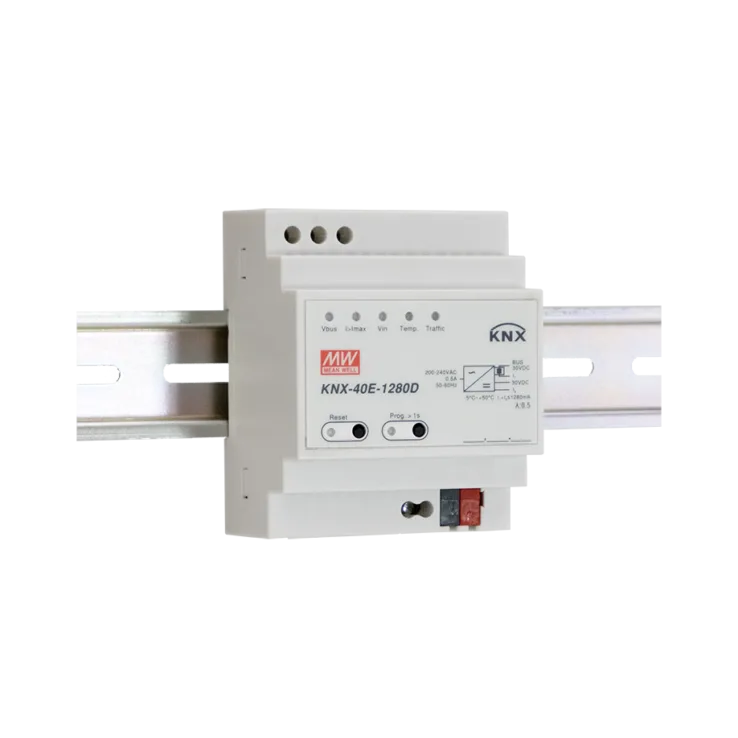

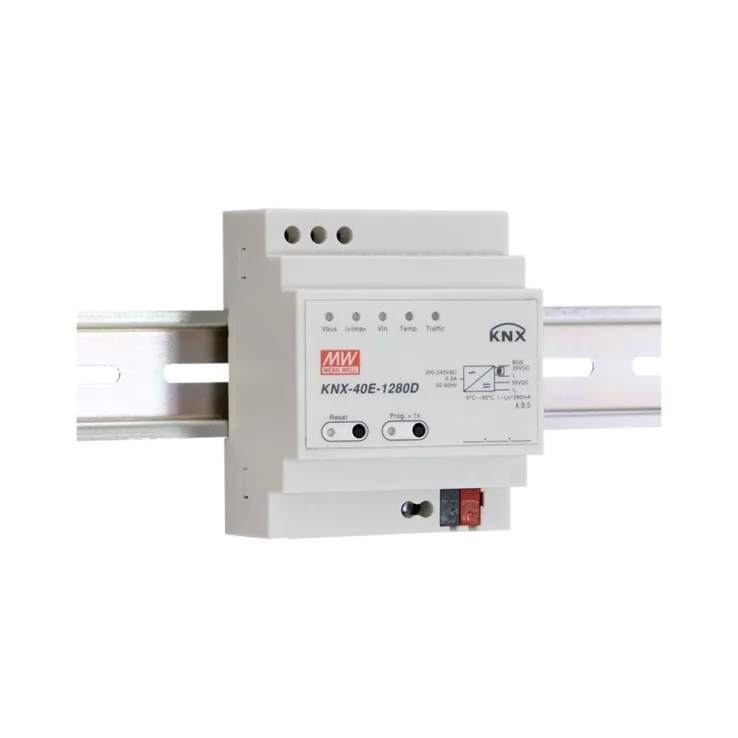

KNX-40E-1280 Series KNX Power Supplies 38.4W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | KNX Power Supplies |
KNX-40E-1280 Series Features:
EIB / KNX power supply with integrated choker
Compact size with 4SU width(72mm)
Other features:
- Safety extra low voltage(SELV)
- Suitable for TP1 -256, 180~264VAC input
- Protections: Short circuit/ Overload(short-circuit-proof)/ Over voltage
- Provide Wide variety of diagnostic and logic function
- 3 years warranty
| Wattage | 38.4 | 38.4 |
|---|---|---|
| Input Voltage | 180-264VAC, 176-280VDC | 180-264VAC, 176-280VDC |
| Output Current | 1280mA | 1280mA |
| Output Voltage | 30 | 30 |
| Output Voltage Options | Single | Single |
| Dimensions | 72 x 90 x 57 | 72 x 90 x 57 |
| Working Temperature | -30 - +70°C | |
| Safety Standards | EN61558-1,EN61558-2-16; EN50491-3 approved | |
| EMC Standards | Compliance to EN50491-5-2,-5-3;EN61000-3-2,-3-3, Compliance to EN50491-5-2,-5-3: EN61000-4-2,3,4,5,6,8, 11, heavy industry level, criteria A | |
