MEAN WELL

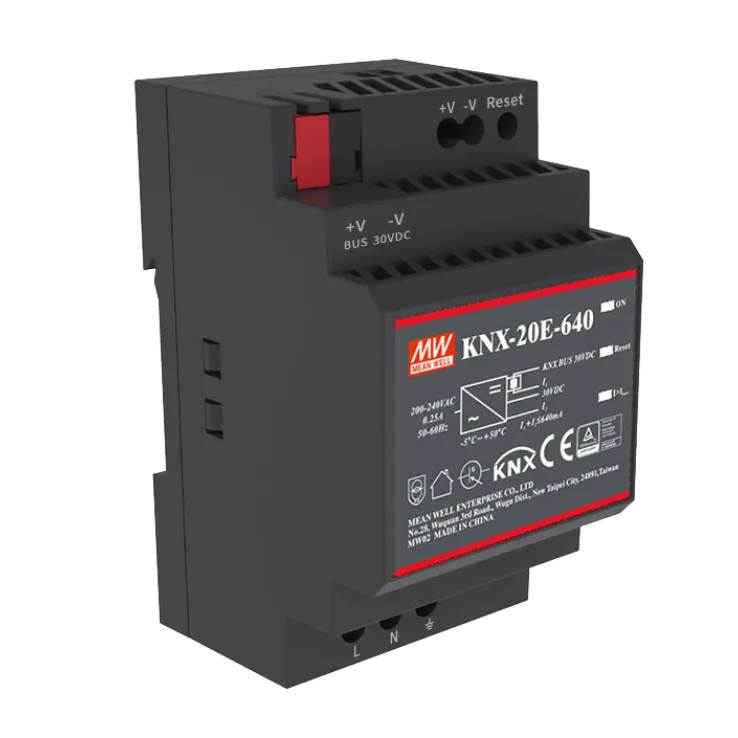

KNX-20E Series KNX Power Supplies
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | KNX Power Supplies |
KNX-20E Series Features:
EIB / KNX power supply with integrated choke
Compact size with 3SU (52.5mm) width
No load power consumption <0.5W
Protections: Short circuit/ Overload/ Over voltage
Other features:
- input 180-264VAC
- Safety extra low voltage (SELV)
- Isolation class I
- Cooling by free air convection
- LED indicator for normal operation, bus reset and bus overload
- Installed on DIN rail TS-35/7.5 or 15
- 100% full load burn-in test
- 3 year warranty
| Wattage | 19.2 |
|---|---|
| Input Voltage | 180-264VAC |
| Output Current | 640mA |
| Output Voltage | 30 |
| Output Voltage Options | Single |
| Dimensions | 52.5x 90x 54 |
| Working Temperature | -30-+70°C |
| Safety Standards | EN61558-1, EN61558-2-16 approved |
| EMC Standards | Compliance to EN50491-5-2.-5-3; EN50491-3; EN61000-3-2,-3-3 Compliance to EN50491-5-2,-5-3; EN61000-4-2,3,4,5,6,8,11, heavy industry level, criteria A |
