P-DUKE

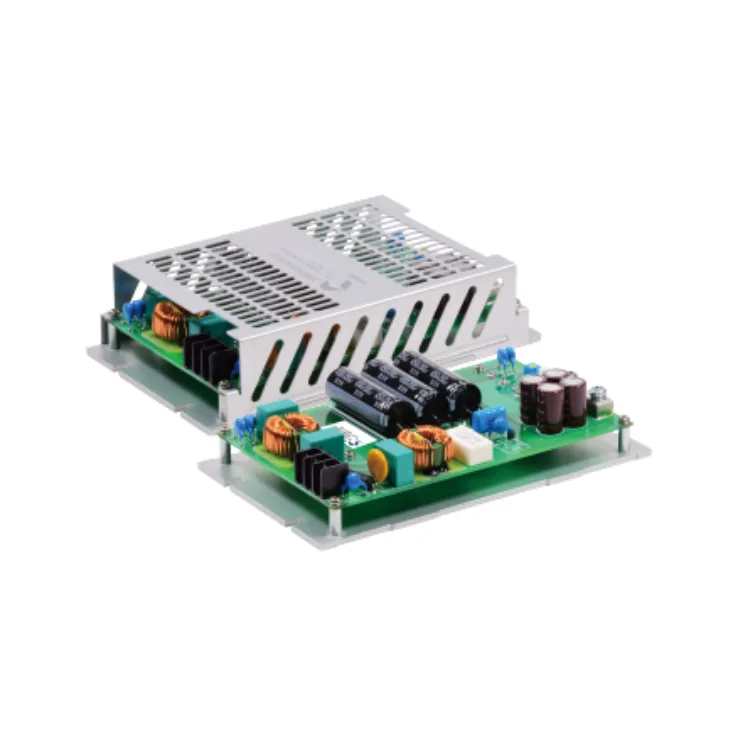

XTBF500 Series Enclosed Power Supplies 500W
Download Datasheet
| Models: |
|
| Manufacturer: | P-DUKE |
| Type: | Enclosed Power Supplies |
XTBF500 Series Features:
- 500W Output Power
- Universal Input Range from 85 to 264 VAC
- Output Voltage: 12, 15, 24, 28, 48, and 54 VDC
- Up to 93% Conversion Efficiency
- 0.6W Power Consumption at No Load
- Power Good Signal
- Current Share Function
- OVC III
- 5000m Operating Altitude
- Meet IEC/UL/EN 62368-1, EN 50155 Approval
- 3 Years Product Warranty
| Wattage | 500 | 500 | 500 | 500 | 500 | 500 |
|---|---|---|---|---|---|---|
| Input Voltage | 85-264 | 85-264 | 85-264 | 85-264 | 85-264 | 85-264 |
| Output Current | 42 | 33.5 | 21 | 18 | 10.5 | 9.4 |
| Output Voltage | 12 | 15 | 24 | 28 | 48 | 54 |
| Dimensions | 182.9 × 93.2 × 42.0 | 182.9 × 93.2 × 42.0 | 182.9 × 93.2 × 42.0 | 182.9 × 93.2 × 42.0 | 182.9 × 93.2 × 42.0 | 182.9 × 93.2 × 42.0 |
| Working Temperature | Operating temperature: −40°C to +100°C with derating. | |||||
| Safety Standards | IEC/EN/UL 62368-1, with EN 50155 and EN 45545-2 railway approvals. | |||||
| EMC Standards | EN 55032/FCC Part 15 Class B conducted and Class A radiated emissions, EN 55035 immunity, and EN 50121-3-2/-4 railway EMC. | |||||
