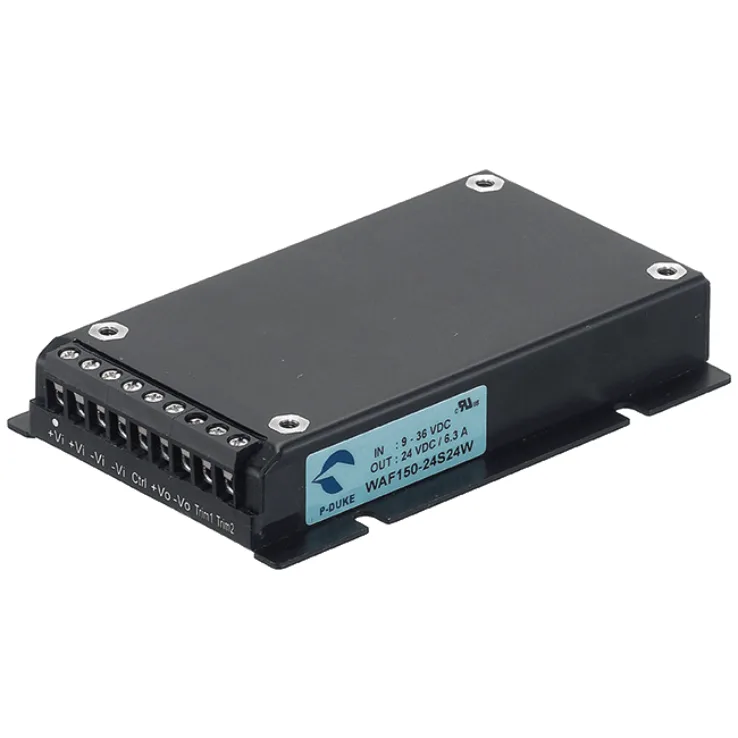

WAF150W/ WAD150W Series DC-DC Power Supplies 150W

Models:	WAF(D)150-24S12W WAF(D)150-24S12W WAF150-24S24W WAF150-24S28W WAF150-24S48W WAF150-48S12W WAF150-48S15W WAF150-48S24W WAF150-48S28W WAF150-48S48W WAF150-110S12W WAF150-110S15W WAF150-110S24W WAF150-110S28W WAF150-110S48W WAD150-24S12W WAD150-24S15W WAD150-24S24W WAD150-24S28W WAD150-24S48W WAD150-48S12W WAD150-48S15W WAD150-48S24W WAD150-48S28W WAD150-48S48W WAD150-110S12W WAD150-110S15W WAD150-110S24W WAD150-110S28W WAD150-110S48W
Manufacturer:	P-DUKE
Type:	DC-DC Power Supplies

WAF150W/ WAD150W Series Features:

No Minimum Load Required
2250VDC Input To Output Insulation
WAF150:3.86x2.560x0.67 Inch / WAD150:3.86x2.067x0.67 Inch
CV+CC Mode
Built-In EN55011 & EN55022 Class A Filter
Six-Sided Continuous Shield
Wall Mount Application
Top Side And Bottom Side Heat Dissipation
Adjustable Output Voltage
Input Reverse Protection
IEC/UL/EN 62368-1 Safety Approval
Complies with EN50155 And EN45545-2 Railway Standard

Spec	WAF(D)150-24S12W	WAF150-24S15W	WAF150-24S24W	WAF150-24S28W	WAF150-24S48W	WAF150-48S12W	WAF150-48S15W	WAF150-48S24W	WAF150-48S28W	WAF150-48S48W	WAF150-110S12W	WAF150-110S15W	WAF150-110S24W	WAF150-110S28W	WAF150-110S48W	WAD150-24S12W	WAD150-24S15W	WAD150-24S24W	WAD150-24S28W	WAD150-24S48W	WAD150-48S12W	WAD150-48S15W	WAD150-48S24W	WAD150-48S28W	WAD150-48S48W	WAD150-110S12W	WAD150-110S15W	WAD150-110S24W	WAD150-110S28W	WAD150-110S48W
Wattage	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150
Input Voltage	9–36 VDC	9–36 VDC	9–36 VDC	9–36 VDC	9–36 VDC	18–75 VDC	18–75 VDC	18–75 VDC	18–75 VDC	18–75 VDC	43–160 VDC	43–160 VDC	43–160 VDC	43–160 VDC	43–160 VDC	9–36 VDC	9–36 VDC	9–36 VDC	9–36 VDC	9–36 VDC	18–75 VDC	18–75 VDC	18–75 VDC	18–75 VDC	18–75 VDC	43–160 VDC	43–160 VDC	43–160 VDC	43–160 VDC	43–160 VDC
Output Current	12.5	10	6.3	5.4	3.2	12.5	10	6.3	5.4	3.2	12.5	10	6.3	5.4	3.2	12.5	10	6.3	5.4	3.2	12.4	10	6.3	5.4	3.2	12.5	10	6.3	5.4	3.2
Output Voltage	12 VDC	15 VDC	24 VDC	28 VDC	48 VDC	12 VDC	15 VDC	24 VDC	28 VDC	48 VDC	12 VDC	15 VDC	24 VDC	28 VDC	48 VDC	12 VDC	15 VDC	24 VDC	28 VDC	48 VDC	12 VDC	15 VDC	24 VDC	28 VDC	48 VDC	12 VDC	15 VDC	24 VDC	28 VDC	48 VDC
Dimensions	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0	65.0 × 89.0 × 17.0
Working Temperature	-40 to +100
Safety Standards	IEC/EN/UL 62368-1; EN50155; EN45545-2
EMC Standards	EN55032; EN50121-3-2 (Class A); EN55035; EN61000-4-2/-4-3/-4-4/-4-5/-4-6/-4-8
