P-DUKE

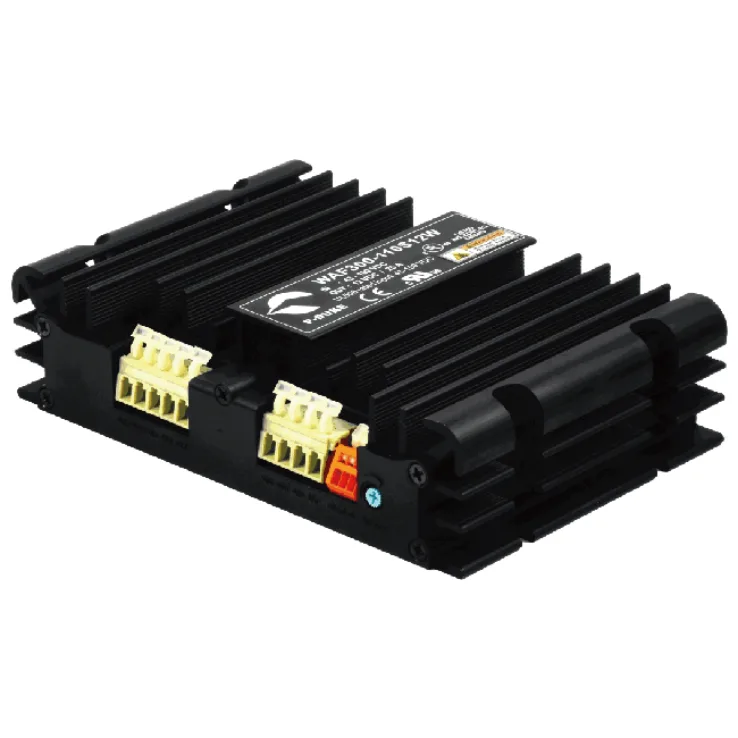

WAF300W Series DC-DC Power Supplies 300W
Download Datasheet
| Models: |
|
| Manufacturer: | P-DUKE |
| Type: | DC-DC Power Supplies |
WAF300W Series Features:
- 3000VAC Isolation Voltage
- 4:1 Wide Input Range
- Built-In EMI Class A Filter
- Operating Temperature: -40℃~100℃
- Approved To EN50155, EN45545-2, And IEC/EN/UL 62368-1 Standards
| Wattage | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 18–75 VDC | 18–75 VDC | 18–75 VDC | 18–75 VDC | 18–75 VDC | 43–160 VDC | 43–160 VDC | 43–160 VDC | 43–160 VDC | 43–160 VDC |
| Output Current | 25 | 20 | 12.5 | 10.8 | 6.3 | 25 | 20 | 12.5 | 10.8 | 6.3 |
| Output Voltage | 12 VDC | 15 VDC | 24 VDC | 28 VDC | 48 VDC | 12 VDC | 15 VDC | 24 VDC | 28 VDC | 48 VDC |
| Dimensions | 152.4 × 101.6 × 27.6 | 152.4 × 101.6 × 27.6 | 152.4 × 101.6 × 27.6 | 152.4 × 101.6 × 27.6 | 152.4 × 101.6 × 27.6 | 152.4 × 101.6 × 27.6 | 152.4 × 101.6 × 27.6 | 152.4 × 101.6 × 27.6 | 152.4 × 101.6 × 27.6 | 152.4 × 101.6 × 27.6 |
| Working Temperature | −40°C to +100°C | |||||||||
| Safety Standards | IEC/EN/UL 62368-1; UL508; EN50155; EN45545-2 | |||||||||
| EMC Standards | EN55032; EN50121-3-2 (EMI Class A); EN55035; EN61000-4-2/-4-3/-4-4/-4-5/-4-6/-4-8 | |||||||||
