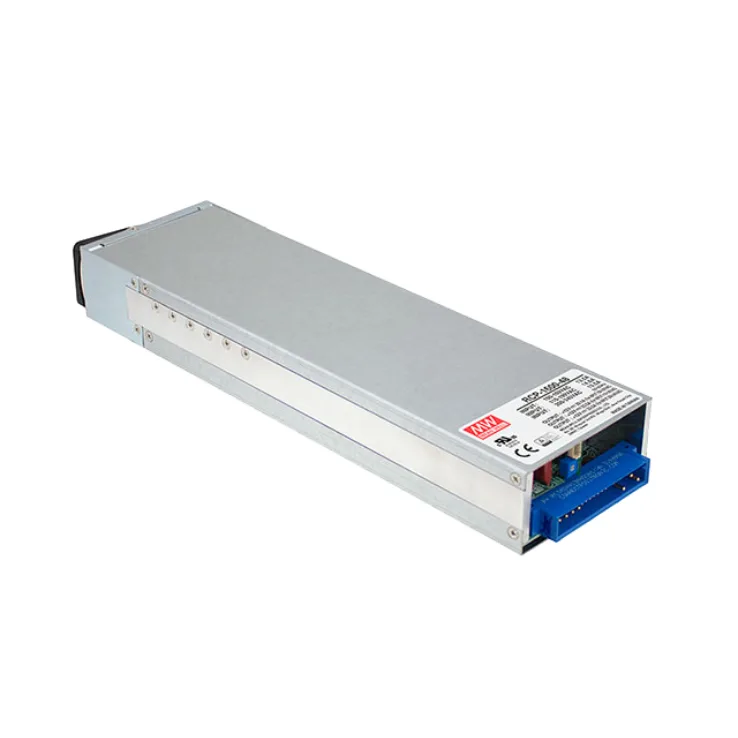

RCP-1600 Series 19 Inch Rack Power Supplies 1500–1608W

Download Datasheet
Models:
  • RCP-1600-12
  • RCP-1600-24
  • RCP-1600-48
Manufacturer: Mean Well
Type: 19 Inch Rack Power Supplies

RCP-1600 Series Features:

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage

Other Features:

  • High efficiency up to 93%
  • Universal AC Input / Full range
  • Forced air cooling by built-in DC fan
  • Output voltage and constant current level programmable
  • Active current sharing up to 8000W for one 19b rack shelf
  • Optional conformal coating
  • 5 years warranty
Wattage 1500 1608 1608
Input Voltage 90~264VAC 90~264VAC 90~264VAC
Output Current 0~125 0~67 0~33.5
Output Voltage 12 24 48
Output Voltage Options Single Single Single
DC output adjustment 11.5-15V 23.5-30V 47.5-58.8V
Dimensions 300 x 85 x 41 300 x 85 x 41 300 x 85 x 41
Working Temperature -30~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 (CISPR22), EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11 EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
