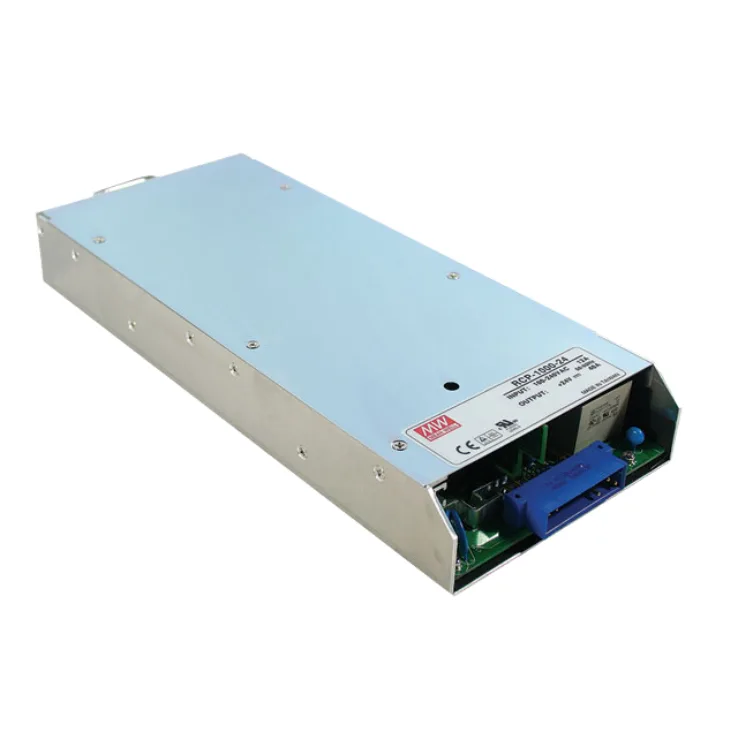

Mean Well RCP-1000 Series 19 Inch Rack Power Supplies 720–1008W

Download Datasheet
Models:
  • RCP-1000-24
  • RCP-1000-48
  • RCP-1000-12
Manufacturer: Mean Well
Type: 19 Inch Rack Power Supplies

RCP-1000 Series Features:

1U low profile

Active current sharing up to 3000W (3 units) in one 19" rack, 3 racks max. can be operated in parallel (up to 9 units)

Hot swap operation

Protections: Short cirucit/ Overload/ Over voltage / Over temperature

Other Features:

  • High power density 10.7w/in3
  • Universal AC/ input / full range
  • Built-in active PFC function
  • Built-in 5V/0.3A standby power
  • Forced air cooling by built in DC fan
  • Internal OR-ing diode
  • Remote control for single unit
  • Built-in remote sense function
  • AC OK and DC OK signal output
  • 3 years warranty
Wattage 960 1008 720
Input Voltage 90~264VAC 90~264VAC 90~264VAC
Output Current 0~40A 0~21A 0~60A
Output Voltage 24 48 12
Output Voltage Options Single Single Single
DC output adjustment 23.2 ~ 24.8V 46.3 ~ 49.7V 11.6 ~ 12.4V
Dimensions 350.8 x 483.6 x 44 350.8 x 483.6 x 44 350.8 x 483.6 x 44
Working Temperature -30B0C~+70B0C (Refer to "Derating Curve") -20~+70B0C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level, EN61204-3,EN6100-3-2
