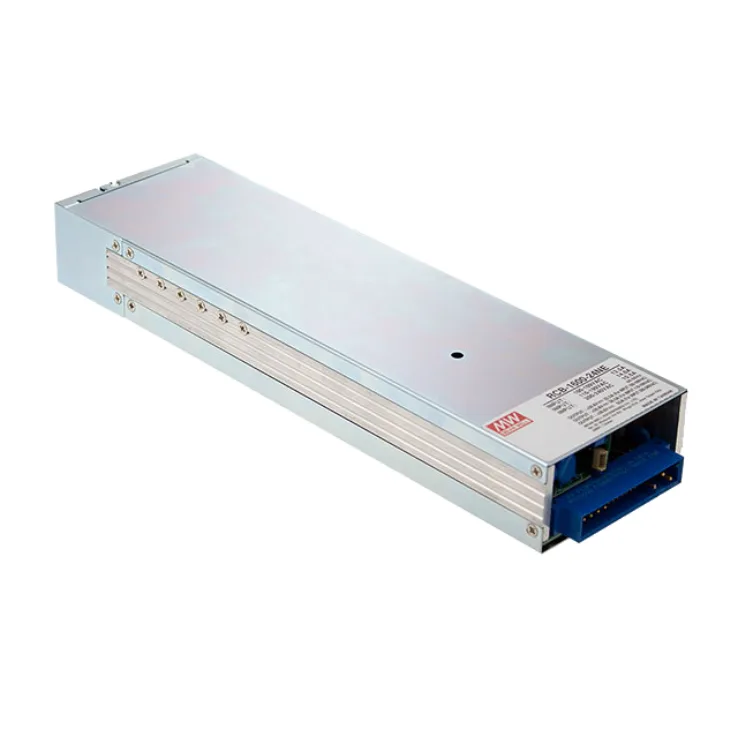

RCB-1600 Series 19 Inch Rack Power Supplies 1440–1584W

Download Datasheet
Models:
  • RCB-1600-12
  • RCB-1600-24
  • RCB-1600-48
Manufacturer: Mean Well
Type: 19 Inch Rack Power Supplies

RCB-1600 Series Features:

Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)

Built-in default 3 stage charging curves and programmable curve

Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature

Other Features:

  • Built-in I2C interface, PMBus protocol
  • Universal AC input / Full range (withstand 300VAC surge input for 5 seconds)
  • Forced air cooling by built-in DC fan
  • Output voltage and current programmable
  • Built-in OR-ing FET support hot swap (hot plug)
  • Active current sharing up to 8000W for one 19b rack shelf
  • Optional conformal coating
  • 5 years warranty
Wattage 1440 1584 1584
Input Voltage 90~264VAC 90~264VAC 90~264VAC
Output Current 0~100 0~55 0~27.5
Output Voltage 12 24 48
Output Voltage Options Single Single Single
DC output adjustment 11.5-15V 23.5-30V 47.5-58.8V
Dimensions 300 x 85 x 41 300 x 85 x 41 300 x 85 x 41
Working Temperature -30~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22) Conduction Class B, Radiation Class A ; EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN500082-2), light industry level, criteria A
