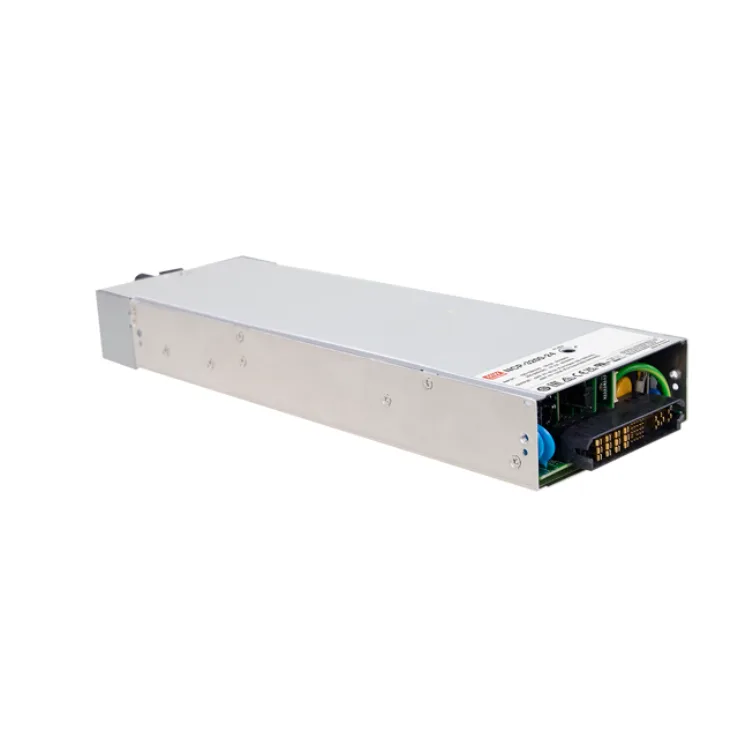

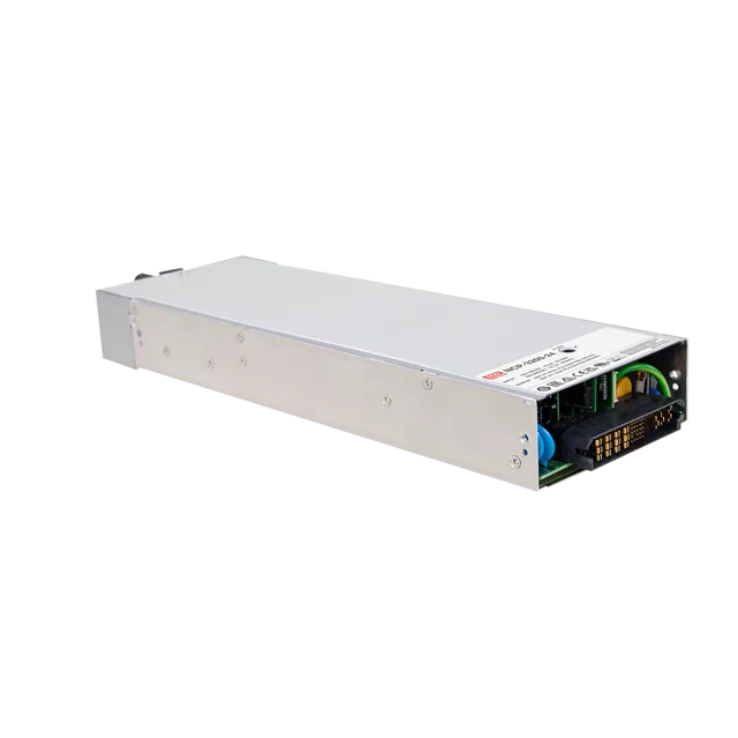

NCP-3200 Series 19 Inch Rack Power Supplies 3192–3216W

Download Datasheet
Models:
  • NCP-3200-24
  • NCP-3200-48
  • NCP-3200-380
Manufacturer: MEAN WELL
Type: 19 Inch Rack Power Supplies

NCP-3200 Series Features:

NCP-3200 is a 3.2KW dual-purpose (switching power supply & charger) rack mounted AC/DC power supply with 1U low profile design and high power density up to 37W/inch

Features:

  • Universal AC input/full range
  • Power supply or charger mode selectable by PMBus, CANBus or SBP-001 (only for24V/48V models)
  • Built-in 2/3 stage charging curves and programmable curve (only for 24V/48Vmodels)
  • High efficiency up to 94.5%
    Built-in programmable output voltage and output current
  • Built-in OR-ing FET or diode, support hot swap (hot plug)
  • Active current sharing up to 10 rack shelves (DHP-1UT-B) and the maximum power supply that can be connected in parallel is 40 units
  • Built in I² C interface, support PMBus/CANBus protocol
  • Built-in intelligent fan speed control
  • Protections: short circuit/overload/over voltage/over temperature
  • Design refer to SEMI F47 standard specification
  • 5 years warranty
Wattage 3192 3216 3206.4
Input Voltage 90~264VAC 90~264VAC 90~264VAC
Output Current 133 67 8.4
Output Voltage 24 48 380
Dimensions 325.8x107x41mm 325.8x107x41mm 325.x107x41mm
Working Temperature -30 ~ +70 (Refer to "Derating Curve")
Safety Standards UL62368-1, CSA C22.2 , TUV BS EN/EN62368-1, EAC TP TC 004 approved ; Design refer to AS/NZS62368.1
EMC Standards BS EN/ EN55024, EN61000-6-2; Design refer to SEMI F47 at 200VAC BS EN/EN55032 (CISPR32), BS EN/EN61000-3-2, BS EN/EN61000-3-3
