MEAN WELL

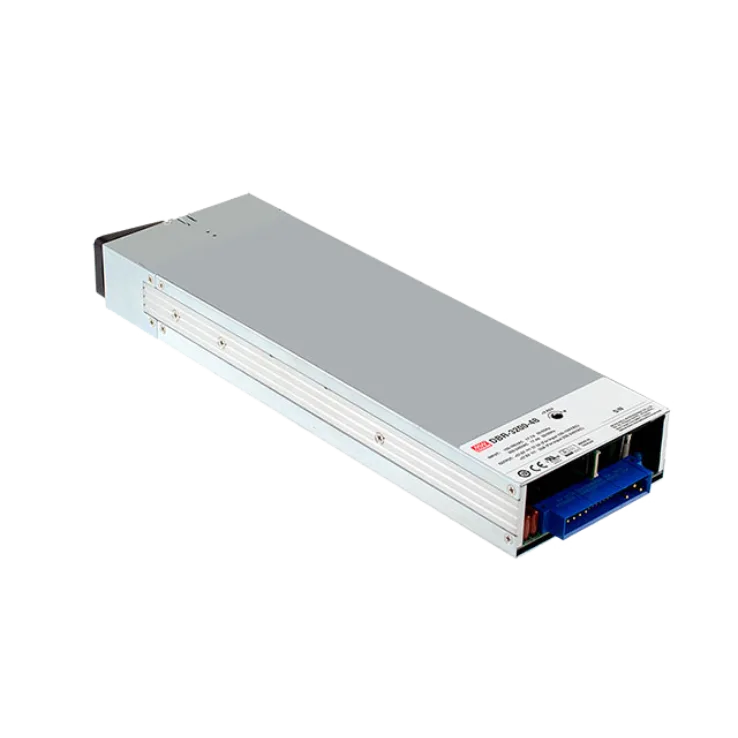

DBR-3200 Series 19 Inch Rack Power Supplies 3036W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | 19 Inch Rack Power Supplies |
DBR-3200 Series Features:
Active current sharing up to 12800W for one 19b rack shelf
Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
Other Features:
- Charger for lead-acid batteries and Li-ion batteries
- Built-in default 3 stage charging curves and programmable curve
- Built-in I2C interface, PMBus protocol (Optional CANBus protocol)
- Built-in OR-ing FET, support hot swap (hot plug)
- Universal AC input / Full range
- Forced air cooling by built-in thermal controlled DC fans
- Output voltage and current programmable
- 5 years warranty
| Wattage | 3036 | 3036 |
|---|---|---|
| Input Voltage | 90~264VAC | 90~264VAC |
| Output Current | 0~110 | 0~55 |
| Output Voltage | 24 | 48 |
| Output Voltage Options | Single | Single |
| DC output adjustment | 23.5-30V | 47.5-58.8V |
| Dimensions | 325 x 107 x 41 | 325 x 107 x 41 |
| Working Temperature | -30~+70°C | |
| Safety Standards | UL62368-1, TUV EN62368-1, EAC TP TC 004 approved | |
| EMC Standards | EN55032 (CISPR32) / EN55011 (CISPR11), EN61000-3-2,3 Compliance to EN55024,EN61204-3, EN61000-6-2, EN61000-4-2,3,4,6,8,11 | |
