| Models: |
|
| Manufacturer: | MEAN WELL |

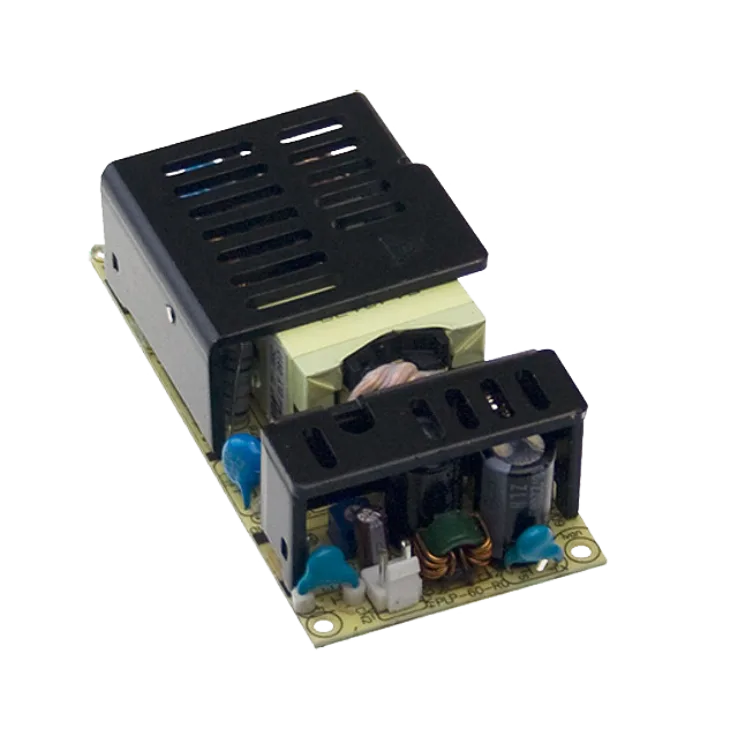

| Type: | PCB Type LED Drivers |
Built-in constant current limiting circuit (C.V.+C.C.mode)
Built-in active PFC function, PF>0.9 for 75% of load or higher
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
| Wattage | 45 | 45 | 45 |
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC |
| Output Voltage | 12 | 24 | 48 |
| Output Voltage Options | Single | Single | Single |
| DC output adjustment | N/A | N/A | N/A |
| Dimensions | 101.6 x 50.8 x 28 | 101.6 x 50.8 x 28 | 101.6 x 50.8 x 28 |
| Working Temperature | -20~+70°C | ||
| Safety Standards | UL8750, TUV EN61347-1 , EN61347-2 13 approved | ||
| EMC Standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 | ||
