MEAN WELL

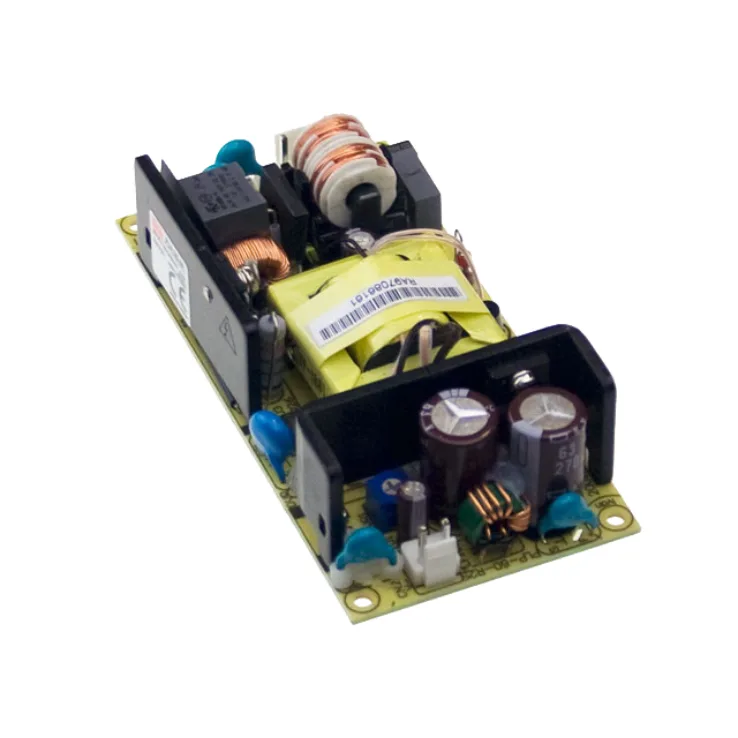

PLP-30 Series PCB Type LED Drivers 30–31W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | PCB Type LED Drivers |
PLP-30 Series Features:
Built-in constant current limiting circuit (C.V.+C.C.mode)
Built-in active PFC function, PF>0.9 for 75% of load or higher
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
- Universal AC input / Full range
- Cooling by free air convection
- Class 2 power unit
- Output current level adjustable
- 100% full load burn-in test
- High reliability
- Suitable for built-in applications of LED lighting
- 2 years warranty
| Wattage | 30 | 31 | 30 |
|---|---|---|---|
| Input Voltage | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC |
| Output Voltage | 12 | 24 | 48 |
| Output Voltage Options | Single | Single | Single |
| Dimensions | 101.6 x 50.8 x 28 | 101.6 x 50.8 x 28 | 101.6 x 50.8 x 28 |
| Working Temperature | -20~+70°C | ||
| Safety Standards | UL8750, TUV EN61347-1, EN61347-2-13, CSA C22.2 No. 250.0-08(except for 48V) approved ; design refer to UL60950-1 | ||
| EMC Standards | EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN55024,EN61547, light industry level, criteria A | ||
