MEAN WELL MEAN WELL logo

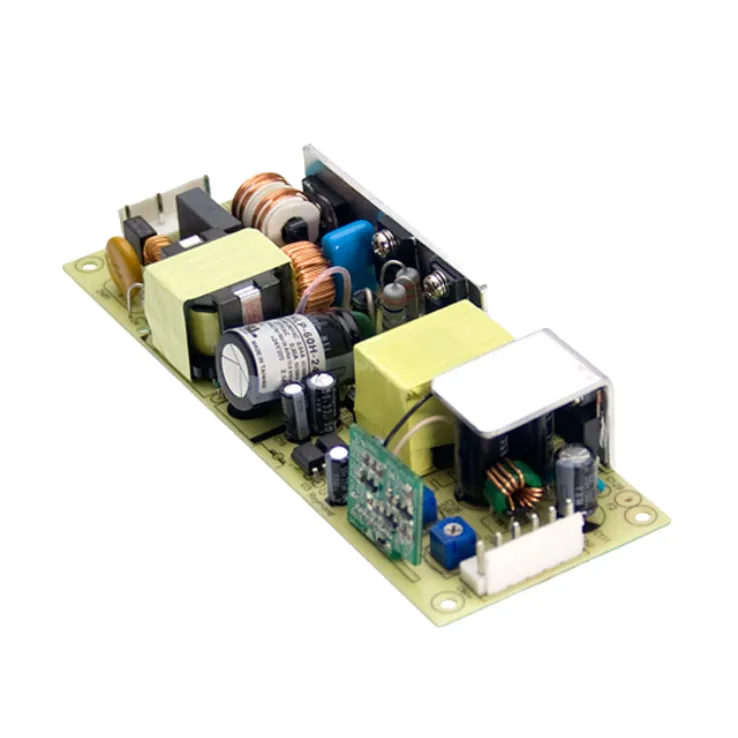

HLP-40H Series PCB Type LED Drivers 40W

Download Datasheet
Models:
  • HLP-40H-12
  • HLP-40H-15
  • HLP-40H-20
  • HLP-40H-24
  • HLP-40H-30
  • HLP-40H-36
  • HLP-40H-42
  • HLP-40H-48
  • HLP-40H-54
Manufacturer: MEAN WELL
Type: PCB Type LED Drivers

HLP-40H Series Features:

Built-in constant current limiting circuit (C.V.+C.C.mode)

Built-in active PFC function, PF>0.95

Protections: Short circuit / Over current / Over voltage / Over temperature

Other features:

  • Universal AC input / Full range
  • Output constant current level adjustable
  • Class 2 power unit
  • Cooling by free air convection
  • Suitable for built-in LED lighting system
  • Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
  • 3 years warranty
Wattage 40 40 40 40 40 40 40 40 40
Input Voltage 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC
Output Voltage 12 15 20 24 30 36 42 48 54
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage
Working Temperature -40-+70°C
Safety Standards UL8750, TUV EN61347-1, EN61347-3-13 approved; Design refer to EN60335-1, UL60950-1, EN60950-1
EMC Standards EN55015, EN61000-3-2 class C, EN61000-4,2,3,4,5,6,8,11, EN61547, EN55024
