MEAN WELL MEAN WELL logo

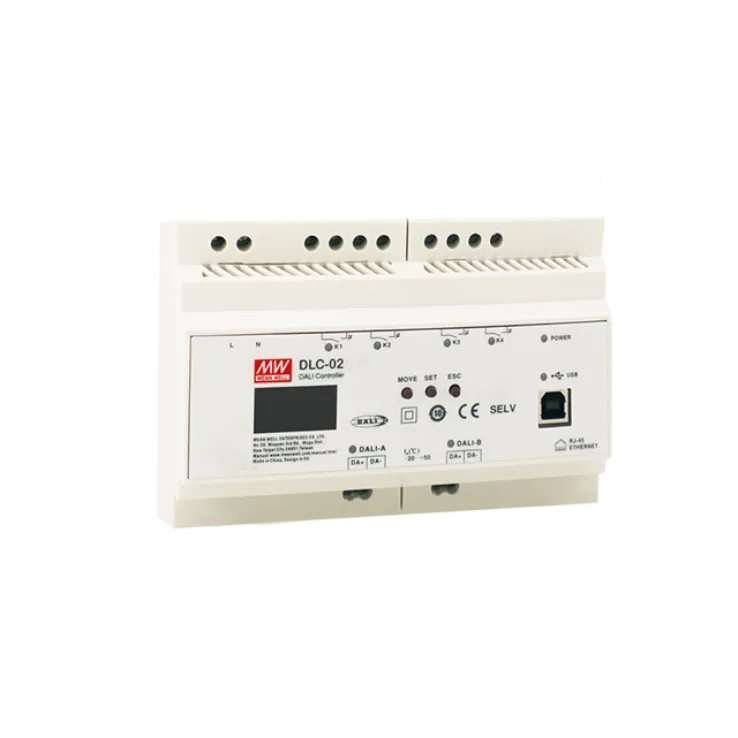

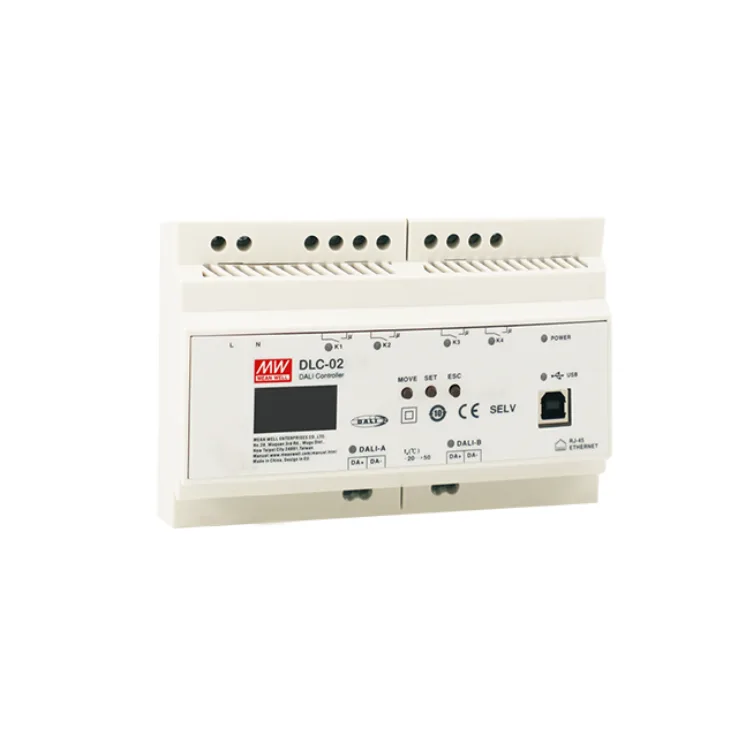

DLC-02 Series LED Controllers/Interfaces

Download Datasheet
Models:
  • DLC-02
Manufacturer: MEAN WELL
Type: LED Controllers/Interfaces

DLC-02 Series Features:

DLC-02 is a multi-master application controller to obtain the information of the DALI-2 system from DALI input device and control the DALI ECGs to make lighting effect.

Features:

  • DALI-2 multi-master application controller
  • Two independent DALI Bus channels with built in DALI power supply (up to 250mA per bus)
  • Connect up to 2 x 64 DALI ECGs/Driver and up to 2 x 12 DALI input devices
  • Max 16 scenes and group setting per channel
  • LCD display, LED indicators and buttons for local operation
  • Built in with 250V/5A x 4 relay
  • Easy installation and configuration via PC software or Web browser
  • Multiple control effect based on the time event and input devices
  • KNX to DALI gateway (KNX version)
  • Support for DALI-2 devices with Part 207/208/301/302/303/304
  • 5 years warranty
Working Temperature -25~45°C
Safety Standards Compliance to BS EN/EN61347-1, BS EN/EN61347-2-11
EMC Standards Compliance to BS EN/EN55015, Harmonic current class A
