MEAN WELL MEAN WELL logo

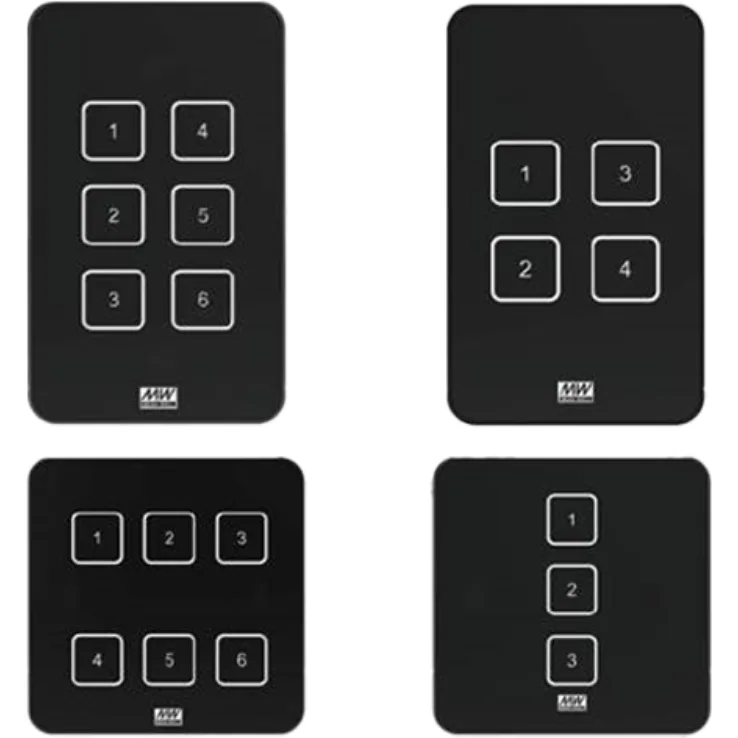

DTP DALI Touch Panel LED Accessories W

Download Datasheet
Models:
  • DTP-206-U
  • DTP-204-U
  • DTP-206-E
  • DTP-203-E
Manufacturer: MEAN WELL
Type: LED Accessories

DTP DALI Touch Panel Features:

The DTP-2XX series compliant with DALI IEC62386 standard as a DALI-2 input device, is powered by the DALI bus and has a variety of buttons

Features:
DALI-2 certified touch panel
Compliant with IEC-62386-301 push button
Compatible for all DALI-2 devices and controllers
Powered by DALI Bus
Configurable functionality via MEAN WELL DLC-02 software
Each button can trigger multiple modes: Short Click/Double Click/Long Press, to trigger scene or grouping functions
Backlight brightness adjustable
Touch panel volume adjustable
2 years warranty

Dimensions 120 * 70 * 26.5mm 120 * 70 * 26.5mm 86 * 86 * 26.5mm 86 * 86 * 26.5mm
Working Temperature -20 ~ +50℃
Safety Standards IEC62386-101 103 301; BS EN/EN61347-1/2-11 IEC62386-101 103 301; BS EN/EN61347-1/2-11 、 、 IEC62386-101 103 301; BS EN/EN61347-1/2-11
EMC Standards BS EN/EN55015 ; BS EN/EN61547 ; FCC Part 15
