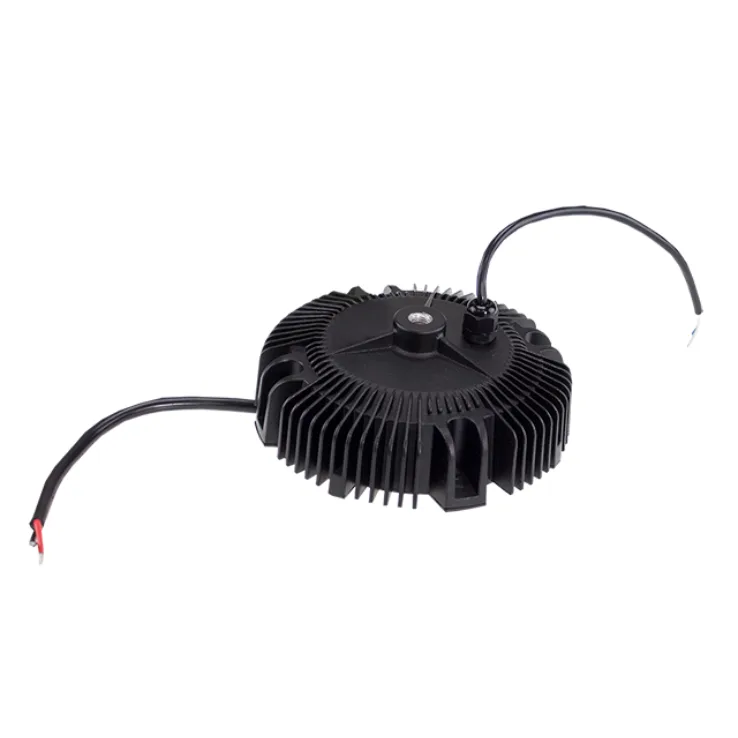

HBGC-300 Series High/Low Bay LED Drivers 300W

Download Datasheet
Models:
  • HBGC-300-H
  • HBGC-300-L
  • HBGC-300-M
Manufacturer: Mean Well
Type: High/Low Bay LED Drivers

HBGC-300 Series Features:

Wide input range 90-305VAC

Full power at 60-100% max current (Constant power)

Other features:

  • Built-in active PFC function
  • IP67 design for indoor and outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off and Isolation design), DALI2 dimming
  • Typical lifetime >50000 hours and 5 years warranty
  • MEAN WELL patented circular metal housing with class I design (patent no.: CN201220314551)
Wattage 300 300 300
Input Voltage 90-305VAC, 127-431VDC 90-305VAC, 127-431VDC 90-305VAC, 127-431VDC
Output Current 8670mA 2170mA 4330mA
Output Voltage Options Single Single Single
DC output adjustment 5200-8670mA 1300-2170mA 2600-4330mA
Dimensions R191.5 x 69 R191.5 x 69 R191.5 x 69
Working Temperature -40 - +80C
Safety Standards UL8750(typeb
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (); EN61000-3-3,EAC TPTC 020, Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TPTC 020
