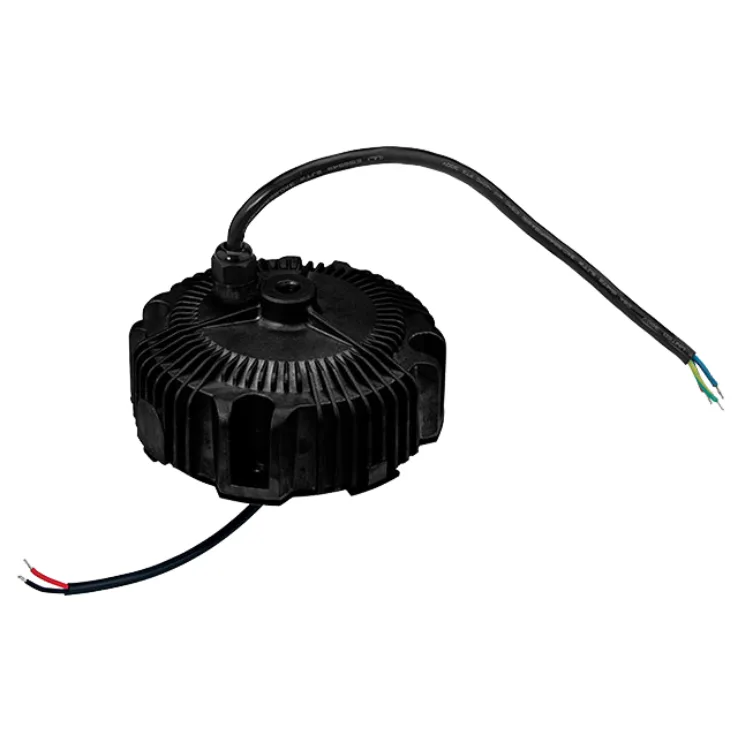

HBG-200 Series High/Low Bay LED Drivers 196.8–198W

Download Datasheet
Models:
  • HBG-200-36
  • HBG-200-48
  • HBG-200-60
Manufacturer: Mean Well
Type: High/Low Bay LED Drivers

HBG-200 Series Features:

HBG-200 series is a 200W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 36V and 60V.

Features:

  • Constant voltage + Constant current mode output
  • Circular metal housing with class I design
  • Built-in active PFC function
  • IP67/IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI
  • Typical lifetime >50000 hours
  • 5 years warranty
Wattage 198 196.8 198
Input Voltage 90~305VAC 127~431VDC 90~305VAC 127~431VDC 90~305VAC 127~431VDC
Output Current 5.5A 4.1A 3.3A
Output Voltage 36V 48V 60V
Dimensions refer to mechanical specification refer to mechanical specification refer to mechanical specification
Working Temperature Tcase=-40~+85°C
Safety Standards UL8750(type"HL"), CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13 independant, EN62384; GB19510.14, GB19510.1; EAC TP TC 004, IP65 or IP67 approved
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (@load≥60%); EN61000-3-3; GB17625.1, GB17743, EAC TP TC 020
