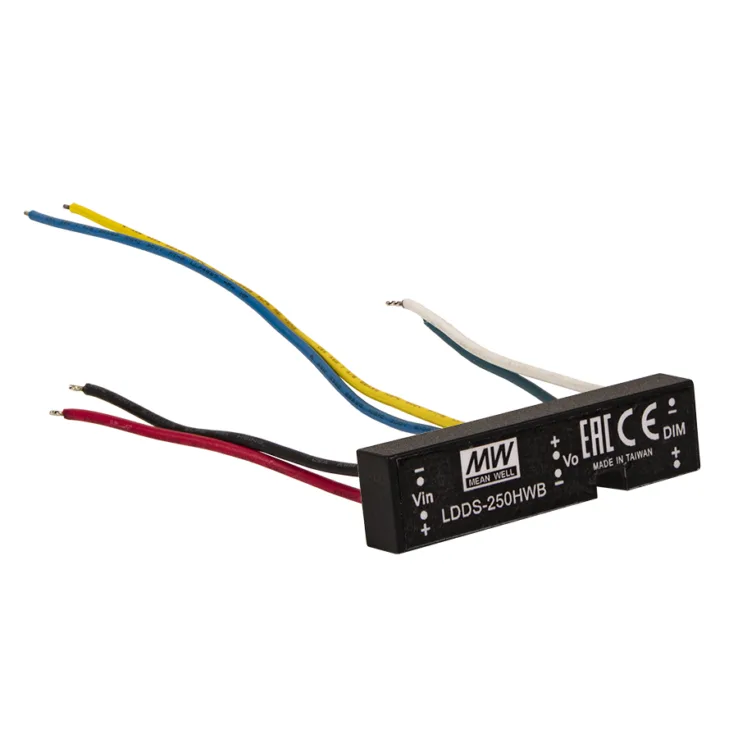

LDDS-H Series DC-DC LED Drivers W

Download Datasheet
Models:
  • LDDS-250HW
  • LDDS-300HW
  • LDDS-350HW
  • LDDS-500HW
  • LDDS-700HW
  • LSSD-1000HW
  • LDDS-250HWB
  • LDDS-300HWB
  • LDDS-350HWB
  • LDDS-500HWB
  • LDDS-700HWB
  • LDDS-1000HWB
Manufacturer: Mean Well
Type: DC-DC LED Drivers

LDDS-H Series Features:

LDDS-H series is a 45W DC/DC LED drive featuring constant current output.

Features:

  • DC/DC step-down converter
  • Constant current output: 250mA to 1000mA
  • Wide input voltage:12~56VDC(48V typ.)
  • Wide output LED forward string voltage: 2~45VDC
  • High efficiency up to 96%
  • Built-in EMI filter, comply with EN55015
  • 3 in 1 dimming and remote ON/OFF control
  • Protections: Short circuit / Over temperature / Over current
  • Cooling by free air convection
  • Compact size and fully encapsulated
  • Suitable for driving illumination LED
  • 5 years warranty
Input Voltage 12~56vdc 12~56vdc 12~56VDC 12~56VDC 12~56VDC 12~56VDC 12~56VDC 12~56VDC 12~56VDC 12~56VDC 12~56VDC 12~56VDC
Output Current 250mA 300mA 350mA 500mA 700mA 1000mA 250mA 300mA 350mA 500mA 700mA 1000mA
Output Voltage Options 2~45VDC 2~45VDC 2~45VDC 2~45VDC 2~45VDC 2~45VDC 2~45VDC 2~45VDC 2~45VDC 2~45VDC 2~45VDC 2~45VDC
Dimensions 47*12*7mm 47*12*7mm 47*12*7mm 47*12*7mm 47*12*7mm 47*12*7mm 47*12*7mm 47*12*7mm 47*12*7mm 47*12*7mm 47*12*7mm 47*12*7mm
Working Temperature -40~55°C
Safety Standards EAC TP TC 004 approved
EMC Standards Compliance to EN55015, EAC TP TC 020
