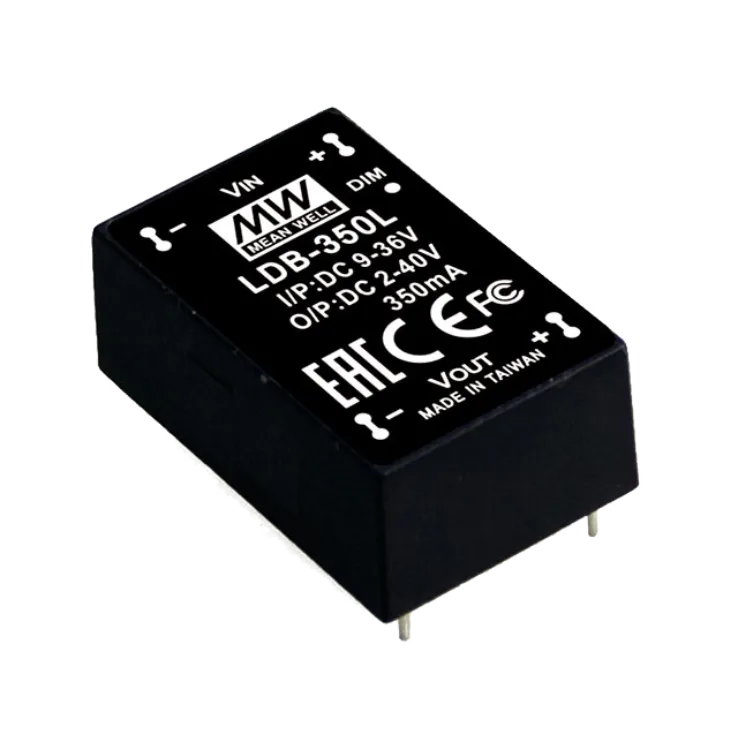

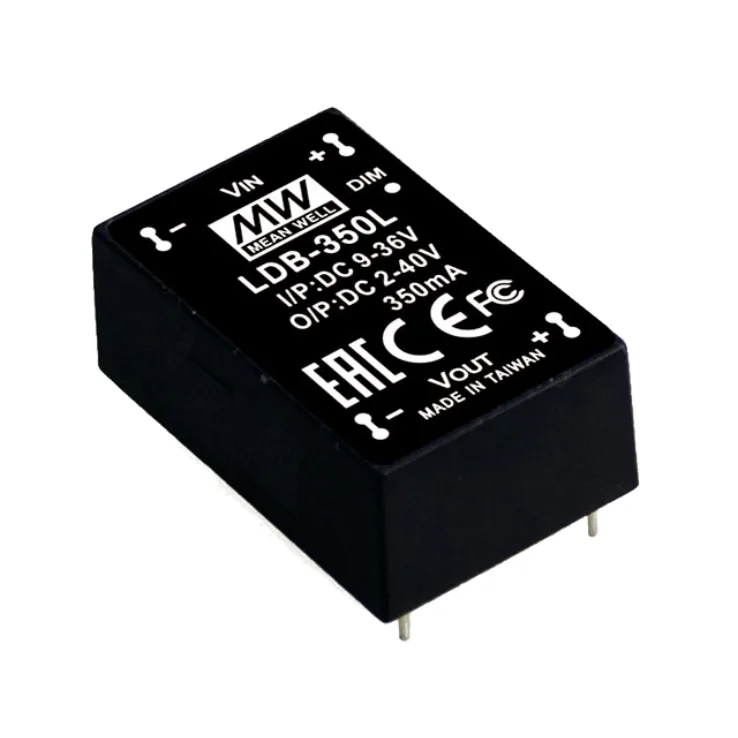

LDB-L Series DC-DC LED Drivers 12–18W

Download Datasheet
Models:
  • LDB-300L
  • LDB-350L
  • LDB-500L
  • LDB-600L
Manufacturer: Mean Well
Type: DC-DC LED Drivers

LDB-L Series Features:

DC-DC buck-boost converter

Wide input voltage: 9 ~ 36VDC

Protections: Short circuit / Over temperature

Other features:

  • Constant current Output: 300mA to 600mA
  • Wide output LED string voltage: 2 ~ 40VDC
  • High efficiency up to 91%
  • Built-in EMI filter, comply with EN55015 and FCC part15 without additional input filter and capacitors
  • Built-in PWM and remote ON/OFF control
  • Cooling by free air convection
  • Fully encapsulated with IP67 level
  • Compact size
  • Low cost, high reliability
  • Suitable for driving illumination LED
  • 3 years warranty
Wattage 12 14 16 18
Input Voltage 9-36VDC 9-36VDC 9-30VDC 9-28VDC
Output Current 300mA 350mA 500mA 600mA
Output Voltage Options Single Single Single Single
Dimensions 31.8x 20.3x 12.2 31.8x 20.3x 12.2 31.8x 20.3x 12.2 31.8x 20.3x 12.2
Working Temperature -40-+71°C
EMC Standards Compliance to EN55015, FCC part 15 class B Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A
